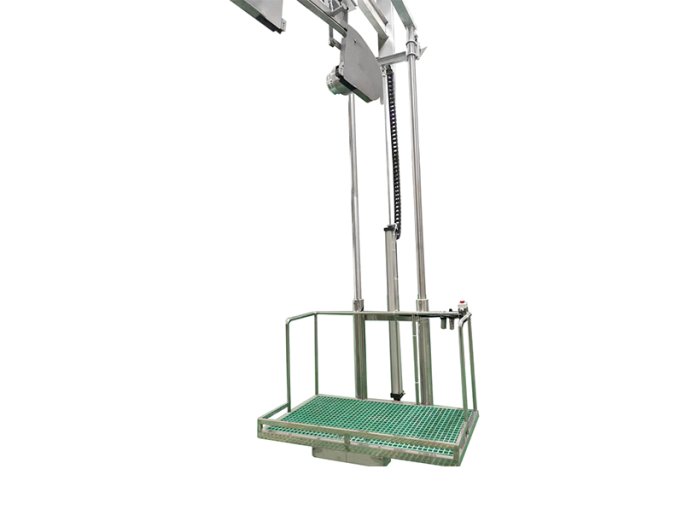

Pneumatic Lifting Table (Skinning)

Pneumatic Lifting Table (Skinning)
Pneumatic Lifting Table (Skinning)
Pneumatic Lifting Table (Skinning)
Pneumatic Lifting Table (Skinning)

Pneumatic Lifting Table (Skinning)

Product Introduction:

Pneumatic Lifting Table for Skinning — Follow the Hide, Work Comfortably

Height-Adjustable Platform for Optimal Skinning Ergonomics

The Pneumatic Lifting Table designed for skinning operations from Henger Manufacturing enables operators to maintain the optimal working height throughout the entire skinning process. As the skinning drum descends, this platform moves in sync, allowing the operator to work at a comfortable level while preserving hide integrity and minimizing carcass damage.

(9) Reviews

PRODUCT DETAILS

Three Configuration Options

Type

Best For

Key Feature

Single Column Single Cylinder

Small spaces

Compact footprint

Single Column Double Cylinder

Medium capacity

Good stability

Double Column Double Cylinder

Heavy carcasses

Maximum load capacity



Technical Specifications

Parameter

Value

Platform Size

800×500 mm / 1,000×600 mm

Lift Range

800~1,500 mm

Working Air Pressure

0.5~0.7 MPa

Load Capacity

≥300 kg

Synchronization Tolerance

≤10 mm (dual-column critical check)

Material

SUS304 + galvanized carbon steel



Critical Quality Control Notes

1. Platform surface must have high symmetry with both columns

2. Dual-column air circuit lengths must be identical

3. Regularly inspect air circuits for blockage or leaks

4. Ensure uniform, stable air pressure at all times

5. Operate gently — avoid sudden forceful movements


Standards

· JB/T 10735 Livestock Slaughter Equipment — Pneumatic Lifting Table Technical Conditions

Contact us for customized lifting table configurations matching your skinning station layout.
