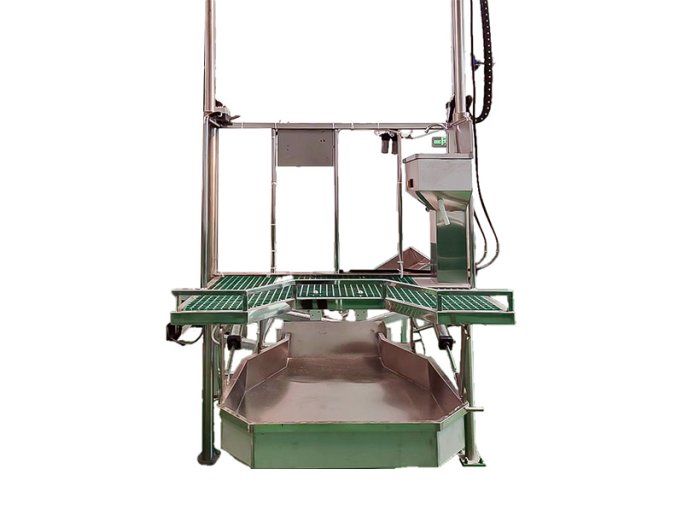

Pneumatic Lifting Table (Evisceration)

Pneumatic Lifting Table (Evisceration)
Pneumatic Lifting Table (Evisceration)
Pneumatic Lifting Table (Evisceration)
Pneumatic Lifting Table (Evisceration)

Pneumatic Lifting Table (Evisceration)

Product Introduction:

Pneumatic Lifting Table with White Viscera Chute — Safe, Hygienic Evisceration

Double-Column Dual-Cylinder Platform with Integrated Organ Collection

The Pneumatic Lifting Table for Evisceration from Henger Manufacturing is a specialized workstation featuring an integrated white viscera (stomach/intestine) collection chute system. It allows operators to perform internal organ removal at optimal working height, with removed organs sliding automatically into the inspection conveyor — eliminating manual handling and preventing cross-contamination.

(16) Reviews

PRODUCT DETAILS

Special Design Features

Feature

Description

Double Column + Double Cylinder

Maximum stability for evisceration loads

Integrated White Viscera Chute

Rear cover can open/close on demand

Adjustable Chute Position

Forward/backward and height adjustable

Inspection Conveyor Interface

Seamless transfer from chute to inspection line



Operation Process

Carcass arrives → Stop → Raise to working height → Move chute to front position

→ Remove white viscera → Organs fall into chute → Return chute position

→ Open rear cover → Organs slide into inspection conveyor → Cycle complete


Technical Specifications

Parameter

Value

Platform Size (with chute)

1,000×700 mm

Lift Range

800~1,600 mm

Chute Volume

≥30 liters (single load)

Working Air Pressure

0.5~0.7 MPa (dual-cylinder sync required)

Material

SUS304 full stainless steel



Standards Compliance

· JB/T 10735 — Pneumatic Lifting Table Technical Conditions

· GB 12694 — Slaughterhouse Hygiene Specification

Contact us for customized evisceration lifting table configurations.

Due to equipment updates, there may be parameter differences or component brand differences. Images and parameters are for reference only. Please contact sales for details.
