Industrial Core Cleaning Equipment & Sanitation Systems

Product Range

Central Cleaning Station

Fixed central hygiene management system for facility-wide sanitation

The Central Cleaning Station is a comprehensive central hygiene management system designed for food processing facilities. It integrates high-pressure water, foam cleaning, and disinfectant application into a single workstation — enabling systematic, touch-free sanitation of production equipment, floors, walls, and overhead structures. The system features German-imported core valve technology, intelligent pressure control, and automated hose management, making it the cornerstone of facility-wide hygiene protocols.

· Hose Coverage: 25m sanitary hose reaches all facility areas

· Valve Technology: German import core valve body

· Control: Touch display with intelligent timing system

· Water Savings: 70% reduction vs. conventional methods

Foam Cleaning Machine HE-FS01

Mobile high-pressure unit with built-in air compressor — fully standalone

The HE-FS01 is the flagship model featuring a built-in silent oil-free air compressor and high-pressure plunger pump (up to 80 Bar) for maximum cleaning power and standalone operation. No external air or water pressure supply is needed — fill the tank and start cleaning immediately. Auto-dosing proportional plug technology eliminates manual chemical dilution.

· Pressure: Up to 80 Bar

· Air Supply: Built-in compressor (silent, oil-free)

· Chemical Dosing: Auto proportional dosing (5L tank)

· Coverage: 2,500–3,000 m² foam / 10,000+ m³ disinfectant

· Best For: Large plants requiring standalone mobile operation

Foam Cleaning Machine HE-FS04

Fixed professional station with precision proportional valves

The HE-FS04 is a fixed professional cleaning station designed for large-scale plants with centralized air and water supplies. Precision imported proportional valves deliver accurate chemical dosing, while the modular design integrates seamlessly with facility infrastructure. Auto-dosing technology allows direct use of concentrated solutions without manual mixing.

· Pressure: Up to 30 Bar (from facility water supply)

· Air Supply: External 4–6 Bar connection

· Chemical Dosing: Auto proportional dosing (5L tank)

· Coverage: 2,500–3,000 m² foam / 10,000+ m³ disinfectant

· Best For: Large plants with existing air/water infrastructure

Foam Cleaning Machine HE-FS02

Compact mobile unit for small workshops

The HE-FS02 is a compact mobile pneumatic foam cleaner designed for small-scale workshops. External air supply drives foam generation while the 60L tank provides generous capacity for extended cleaning sessions. Manual pre-mixed solution (1:3 ratio) offers straightforward operation for basic foam cleaning applications.

· Pressure: 0.8 MPa (from external air supply)

· Chemical Tank: 60L (manual pre-mixed)

· Hose Length: 15m

· Weight: 20.5 kg (easy mobility)

· Best For: Small workshops, basic foam cleaning needs

Foam Cleaning Machine HE-FS03

Extended capacity mobile unit for small-to-medium workshops

The HE-FS03 offers the same pneumatic foam cleaning capability as the HE-FS02 with an expanded 70L chemical tank for longer operation between refills. Compact dimensions and straightforward manual operation make it an ideal upgrade for workshops requiring extended cleaning coverage without the complexity of automated systems.

· Pressure: 0.8 MPa (from external air supply)

· Chemical Tank: 70L (manual pre-mixed)

· Hose Length: 15m

· Weight: 28 kg

· Best For: Small-to-medium workshops, extended cleaning sessions

Technical Specifications Comparison

Key Features

German Valve Technology

Imported core valve body in both the Central Cleaning Station and all Foam Cleaning Machine models ensures reliable, long-lasting performance across all cleaning modes — water, foam, and disinfectant.

Three-in-One Functionality

One-click switching between high-pressure water rinse, foam cleaning, and spray disinfection modes. No shutdown or equipment change required — operators select the appropriate mode for each cleaning task.

Water & Chemical Savings

Flow-sensing auto-control activates the pump only when in use, stopping automatically during idle periods. Combined with precision proportional dosing, this reduces water consumption by 70–80% compared to conventional rinsing methods.

Auto Dosing System (HE-FS01 / HE-FS04)

Imported proportional plug technology delivers accurate chemical dilution automatically. Fill the 5L tank with concentrated solution — the machine proportions the correct dilution (foam plug: 1.0 mm / disinfectant plug: 0.6 mm) without manual mixing.

Built-in Air Compressor (HE-FS01)

Integrated silent oil-free compressor eliminates the need for external air supply. Fully standalone operation means the unit can be positioned anywhere in the facility without infrastructure constraints.

Extended Reach Coverage

25m food-grade hose on Central Cleaning Station and HE-FS01/HE-FS04 models provides comprehensive coverage for large workshop areas, reaching walls, floors, ceiling structures, and production equipment without repositioning.

Intelligent Temperature & Pressure Control

Central Cleaning Station and Crate Washers feature automated temperature regulation maintaining 82°C or 95°C sterilization temperatures efficiently. Constant pressure systems ensure uniform spray coverage across all surface types.

Safety Features

Water-electricity separation and multi-layer leakage protection on HE-FS01 and HE-FS04. Water shortage alarms, emergency stop switches, and photoelectric safety sensors on applicable models protect operators throughout the cleaning process.

Modular Design for Easy Maintenance

Stainless steel modular piping with loop-joint connections and waterproof gaskets enables straightforward disassembly and reassembly. Filter elements are easily accessible for routine cleaning and replacement.

Application Scenarios

Working Principle

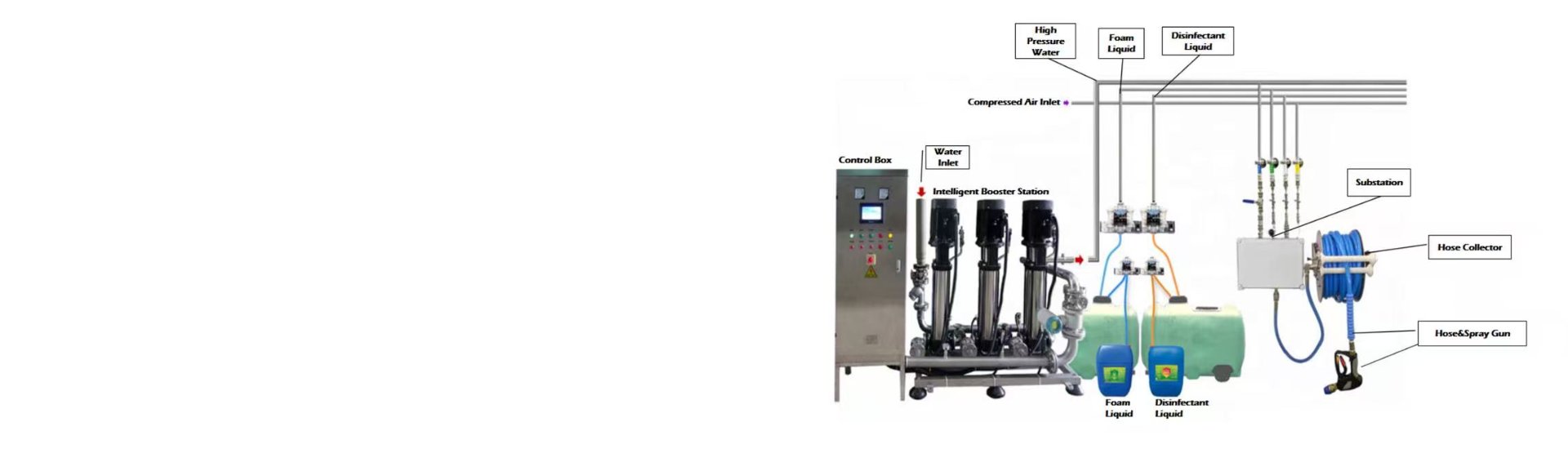

Central Cleaning Station Flow

Hygiene Protocol Triggered

    ↓

Operator selects cleaning mode (Water / Foam / Disinfectant)

    ↓

German-imported valve body activates and regulates flow

    ↓

Constant pressure system ensures uniform spray coverage

    ↓

25m sanitary hose delivers media to target surface

    ↓

Touch display monitors status, timing, and pressure

    ↓

Automated hose retraction after use

    ↓

Facility hygiene completed — equipment ready for production

Foam Cleaning Machine Flow

Operator activates the cleaning unit

    ↓

Select cleaning mode: High-Pressure Water / Foam / Disinfectant

    ↓

Water supply enters through inlet

(HE-FS01: plunger pump pressurizes to 50–80 Bar;

HE-FS04: external water supply at 25–30 Bar;

HE-FS02/03: air supply drives pneumatic system)

    ↓

German-technology valve body regulates flow and switches media

    ↓

Proportional plug auto-doses concentrated chemical (HE-FS01/04)

OR manual pre-mixed solution drawn (HE-FS02/03)

    ↓

Built-in air compressor (HE-FS01) or external air supply generates

dense foam / fine disinfectant mist

    ↓

25m food-grade hose delivers media to target surface

    ↓

Flow-sensing auto-control activates pump on demand, stops when idle

    ↓

Cleaning complete — hose retracts, unit stands by for next cycle

FAQ

Q1: What's the difference between the Central Cleaning Station and Foam Cleaning Machines?

A: The Central Cleaning Station is a fixed facility-wide hygiene management system with German valve technology and automated hose management — ideal as the cornerstone of comprehensive sanitation protocols. Foam Cleaning Machines are flexible cleaning units available in mobile (HE-FS01/02/03) and fixed (HE-FS04) configurations, designed for targeted cleaning of specific equipment and workshop areas. The Central Station serves the entire facility; Foam Cleaning Machines provide localized cleaning flexibility.

Q2: Which Foam Cleaning Machine model is right for my facility?

A: Choose based on your infrastructure and operational needs: HE-FS01 for large plants needing a fully standalone mobile unit with maximum pressure (80 Bar) and built-in compressor. HE-FS04 for large plants with existing air/water infrastructure seeking precision chemical dosing in a fixed installation. HE-FS02/03 for small-to-medium workshops with basic foam cleaning needs and external air supply available.

Q3: Do HE-FS01 and HE-FS04 require pre-mixed chemicals?

A: No. HE-FS01 and HE-FS04 use automatic proportional dosing with imported precision valves — simply fill the 5L tank with concentrated solution, and the machine proportions the correct dilution automatically. HE-FS02 and HE-FS03 require manual pre-mixed solution at a 1:3 dilution ratio.

Q4: How large of an area can one tank cover?

A: With auto-dosing models （HE-FS01/04）: approximately 2,500–3,000 m² with foam agent and over 10,000 m³ with disinfectant per 5L concentrated tank. With manual models （HE-FS02/03）: approximately 1,000–2,000 m² per tank of pre-mixed solution.

Q5: Can the cleaning modes be switched during operation?

A: Yes. All models support one-click switching between high-pressure water rinse, foam cleaning, and spray disinfection via the control valve — no shutdown or equipment change needed.

Q6: What safety features are included?

A: HE-FS01 and HE-FS04 feature water-electricity separation, multi-layer leakage protection, and emergency stop switches. HE-FS01 also includes a variable frequency drive for stable operation under power fluctuations. Central Cleaning Station includes water shortage alarms and photoelectric safety monitoring. All units meet applicable food-grade safety standards.

Q7: What water and air supply do the machines require?

A: Standard models require 380V three-phase power （50Hz）. HE-FS04 connects to facility water （25–30 Bar） and external air supply （4–6 Bar）. HE-FS02/03 require external air supply （0.8 MPa）. Central Cleaning Station connects to facility water supply and steam for heating. Our technical team confirms exact requirements during configuration.
