Foam Cleaning Machine for Efficient Workshop Disinfection

Q: What is the difference between HE-FS01 and HE-FS04?

HE-FS01 is a mobile standalone unit with built-in compressor and up to 80 Bar pressure. HE-FS04 is a fixed station using external air supply with proportional dosing system.

Q: Does the machine require pre-mixed chemicals?

HE-FS01 and HE-FS04 support automatic dosing with concentrated solution. HE-FS02 and HE-FS03 require manual pre-mixed solution at 1:3 ratio.

Q: What cleaning modes are available?

The machine supports high-pressure water rinse, foam cleaning, and spray disinfection with one-click switching.

Q: What safety features are included?

Includes water-electricity separation, leakage protection, emergency stop system, and stable pressure control.

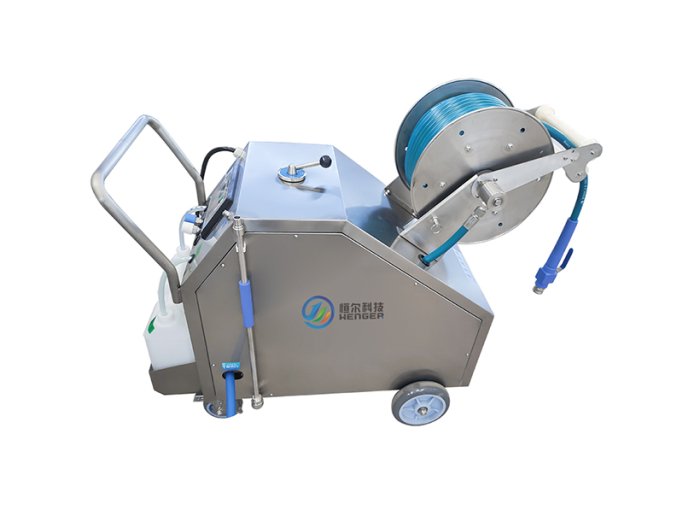

Foam Cleaning Machine

Product Introduction:

The Foam Cleaning Machine is a versatile sanitation system engineered for food processing facilities, combining high-pressure water rinsing, foam cleaning, and spray disinfection in one compact unit. Designed for workshops that demand efficient, reliable hygiene without the infrastructure of a central system, it delivers professional-grade cleaning performance with flexible deployment options.

The series includes four models tailored to different operational scales and facility requirements. The HE-FS01 is the flagship model featuring a built-in air compressor and high-pressure plunger pump for maximum cleaning power and standalone operation. The HE-FS04 is a fixed professional station with precision proportional valves for accurate chemical dosing, ideal for large-scale plants with centralized air and water supplies.

ADD TO CART Inquire Now

(26) Reviews

Quick Navigation

Product Details
Reviews
Inquiry
Products Recommended

PRODUCT DETAILS

Key Highlights

Highlight	Description
Three-in-One Functionality	One-click switch between high-pressure water rinse, foam cleaning, and spray disinfection
German Valve Technology	Imported valve body ensures reliable, long-lasting performance across all cleaning modes
Built-in Air Compressor (HE-FS01)	Integrated silent oil-free compressor — no external air supply needed
Precision Proportional Valve (HE-FS04)	Imported proportional plug for accurate chemical dosing — use concentrated solution directly
Auto Dosing System	HE-FS01 & HE-FS04: automatic proportioning, no manual dilution required
80% Water Savings	Flow-sensing auto-control reduces water consumption by 80% vs. conventional rinsing
25m Food-Grade Hose	Extended reach for large workshop areas
SUS304 Stainless Steel	Full 304 stainless steel construction for durability and corrosion resistance

Technical Specifications

Parameter	HE-FS01	HE-FS04	HE-FS02	HE-FS03
Type	Mobile High-Pressure	Fixed Station	Mobile Pneumatic	Mobile Pneumatic
Power Supply	380V / 3kW	380V / 4kW	External Air Supply	External Air Supply
Max Pressure	80 Bar	30 Bar	0.8 MPa	0.8 MPa
Air Supply	Built-in Compressor	External 4–6 Bar	External Compressor	External Compressor
Hose Length	25 m	25 m	15 m	15 m
Chemical Tank	5 L (auto dosing)	5 L (auto dosing)	60 L (manual 1:3)	70 L (manual 1:3)
Foam Coverage	2,500–3,000 m²	2,500–3,000 m²	1,000–2,000 m²	1,000–2,000 m²
Dosing Mode	Auto (proportional plug)	Auto (proportional plug)	Manual (pre-mixed)	Manual (pre-mixed)
Material	SUS304 Stainless Steel	SUS304 Stainless Steel	SUS304 + Plastic Tank	SUS304
Dimensions (mm)	1,240 × 640 × 1,050	1,000 × 600 × 1,600	600 × 450 × 1,090	600 × 450 × 1,090
Weight	172.5 kg	~150 kg	20.5 kg	28 kg
Best For	Large plants, standalone	Large plants, fixed	Small workshops	Small workshops

Application Scenarios

Application	Function	Suitable For
Equipment Surface Cleaning	High-pressure water rinse	Production lines, conveyors, cutting tables, mixers
Foam Degreasing	Thick foam coverage for oil and stubborn residues	Processing vats, tanks, smoking chambers, fryers
Disinfectant Spraying	Even fine mist of sanitizing solution	Walls, floors, ceiling structures, drain channels
Post-Cleaning Rinse	Clean water flush after foam/detergent application	All food contact surfaces, equipment interiors
Workshop Area Sanitation	Long-reach hose with extended coverage	Meat processing, dairy, beverage, prepared food facilities
Cold Room Cleaning	Low-temperature compatible foam application	Walk-in coolers, freezing tunnels, cold storage areas

Working Principle

Operator activates the cleaning unit

↓

Select cleaning mode: High-Pressure Water / Foam / Disinfectant

↓

Water supply enters through inlet (HE-FS01: plunger pump pressurizes to 50–80 Bar;

HE-FS04: external water supply at 25–30 Bar)

↓

German-technology valve body regulates flow and switches media

↓

Proportional plug auto-doses concentrated chemical (foam plug: 1.0 mm /

disinfectant plug: 0.6 mm) — no manual dilution needed

↓

Built-in air compressor (HE-FS01) or external air supply (HE-FS04)

generates dense foam / fine disinfectant mist

↓

25m food-grade hose delivers media to target surface

↓

Flow-sensing auto-control activates pump on demand, stops when idle

↓

Cleaning complete — hose retracts, unit stands by for next cycle

FAQ

Q1: What is the difference between HE-FS01 and HE-FS04?

A: The HE-FS01 is a mobile unit with a built-in air compressor and high-pressure plunger pump (up to 80 Bar), making it fully standalone — no external air or water pressure supply needed. The HE-FS04 is a fixed station that connects to existing facility air (4–6 Bar) and water supplies, featuring precision proportional valves for exact chemical dosing.

Q2: Does the machine require pre-mixed chemicals?

A: HE-FS01 and HE-FS04 use an automatic dosing system with imported proportional plug technology — fill the 5 L tank with concentrated solution and the machine proportions the correct dilution automatically. HE-FS02 and HE-FS03 require pre-mixed solution at a 1:3 ratio.

Q3: How large of an area can one tank cover?

A: The 5 L concentrated tank on HE-FS01 and HE-FS04 covers approximately 2,500–3,000 m² with foam agent and over 10,000 m³ with disinfectant. HE-FS02 (60 L) and HE-FS03 (70 L) with pre-mixed solution cover approximately 1,000–2,000 m².

Q4: Can the cleaning modes be switched during operation?

A: Yes. All models support one-click switching between high-pressure water rinse, foam cleaning, and spray disinfection via the control valve — no shutdown or equipment change needed.

Q5: What safety features are included?

A: HE-FS01 and HE-FS04 feature water-electricity separation, multi-layer leakage protection, and emergency stop switches. The HE-FS01 also includes a variable frequency drive for stable operation under power fluctuations.
