Product Introduction:

Carcass Processing Hanging Conveyor — The Backbone of Your Slaughter Line

Continuous Suspended Conveying From Pre-Skinning to Splitting

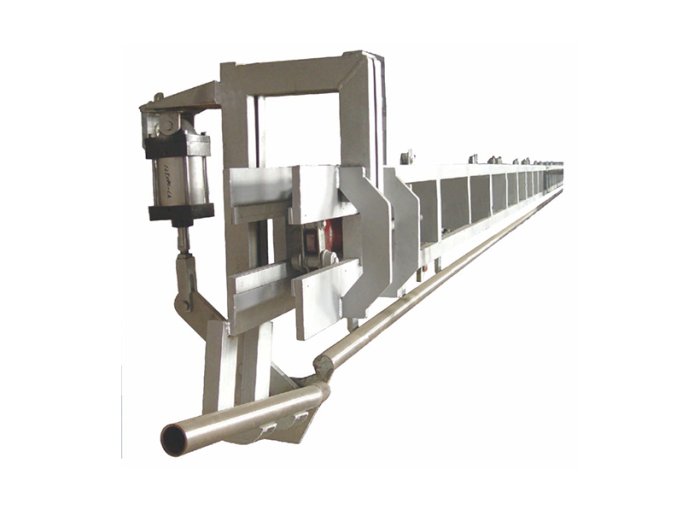

The Carcass Processing Hanging Conveyor from Henger Manufacturing is the main arterial system that transports carcasses between workstations after transfer from the bleeding line. It seamlessly connects skinning, evisceration, trimming, and splitting operations in a continuous flow.

(21) Reviews

PRODUCT DETAILS

Technical Specifications

Parameter

Value

Conveying Speed

2~6 m/min (variable frequency drive)

Pitch (hook spacing)

1,200~2,000 mm

Drive Power

2.2~5.5 kW (sized by line length)

Rail Type

I-beam rail / enclosed rail (enclosed preferred)

Load per Hook

≥400 kg

Control Method

PLC + HMI with speed regulation



Design Options

· Enclosed Rail System — Superior hygiene, easier cleaning

· I-Beam Rail — Cost-effective for budget-conscious projects

· Manual Push Mode — For aging room applications

· Motor Drive Mode — For high-throughput production lines


Standards

· GB/T 27518 Livestock Slaughter Equipment — Hanging Conveyor

· GB/T 15706 Machinery Safety

Contact us for conveyor layout design matched to your slaughter line workflow.
