Foam Cleaning System for Slaughterhouses: CIP Integration and Water Reduction Strategies

Slaughterhouse facility managers face mounting pressure to reduce water consumption while maintaining rigorous sanitation standards. Traditional high-pressure hose washing of processing equipment, conveyor belts, cutting tables, and floor surfaces consumes substantial volumes of water per shift, yet often fails to deliver consistent cleaning results across complex surface geometries. Foam cleaning technology offers a structured alternative that applies detergent as an expanding foam, extending chemical contact time while reducing total water usage compared to conventional spray methods.

Henger Technology engineers the Foam Cleaning System specifically for slaughterhouse and meat processing environments that require reliable, repeatable surface sanitation. This guide examines the operational limitations of traditional cleaning methods, reviews HACCP and GMP compliance requirements for equipment surface cleaning, and provides practical evaluation criteria for plant managers considering CIP-integrated foam sanitizing equipment. With over 60 equipment invention patents and an engineering team averaging 15+ years of industry experience, Henger Technology delivers slaughterhouse sanitation solutions that support food safety compliance across global meat export markets.

Factory Operation Core Pain Points

• Excessive water consumption with traditional hose washing: Open-hose high-pressure washing of processing surfaces can consume several hundred liters of water per cleaning cycle. Across multiple daily cleaning sessions, this adds up to significant water costs and wastewater treatment burden, particularly in regions where water resources are limited or wastewater discharge is strictly regulated.

• Insufficient detergent contact time: When detergent is applied as a liquid spray, it runs off vertical and inclined surfaces within seconds, preventing the chemical from effectively breaking down fat and protein films. Without adequate contact time, workers must reapply detergent repeatedly, increasing chemical consumption without achieving consistent cleaning results.

• Cleaning dead zones on complex equipment: Conveyor frames, guide rails, chain links, underside of cutting tables, and gear housings contain recessed areas that are difficult to reach with standard spray wands. Organic residue accumulates in these dead zones over successive shifts, creating bacterial harborage points that HACCP auditors flag as critical non-conformances.

• Inconsistent manual cleaning results: Cleaning effectiveness varies with individual worker technique, fatigue, and time pressure. Different operators apply different amounts of detergent, use different spray angles, and spend different amounts of time on each surface. This variability makes it impossible to standardize cleaning outcomes or validate that all surfaces meet the same microbial reduction target.

• No CIP automation for repetitive cleaning tasks: Processing equipment that requires cleaning between product changeovers or at shift end typically relies on manual disassembly and hose washing. Without CIP-integrated foam sanitizing equipment, plants cannot automate repetitive cleaning sequences, tying up labor and extending downtime between production runs.

• Chemical waste and dosing imprecision: Manual detergent pouring and uncalibrated spray equipment deliver inconsistent chemical concentrations. Over-dosing wastes expensive cleaning chemicals and may leave residue on food contact surfaces, while under-dosing fails to achieve the required microbial reduction, compromising HACCP compliance.

Industry Hygiene & Production Compliance Standards

Surface cleaning in slaughterhouse environments is governed by multiple food safety frameworks that specify requirements for cleaning methods, frequency, validation, and documentation. Plant managers must understand how each standard applies to foam cleaning system implementation:

• HACCP (Hazard Analysis and Critical Control Points): Equipment surface cleaning must be identified as a critical control point or prerequisite program in the HACCP plan. The plan must specify cleaning frequency, detergent type and concentration, contact time, and verification methods. Foam cleaning systems support HACCP compliance by providing controlled, repeatable detergent application with documented contact time.

• ISO 9001 (Quality Management System): Cleaning procedures for food contact and non-food contact surfaces must be documented, validated, and periodically verified. ISO 9001 requires that foam cleaning procedures be standardized with defined detergent concentrations, application times, and rinse protocols. Equipment must be maintained according to manufacturer specifications to ensure consistent performance.

• GMP (Good Manufacturing Practice): GMP regulations require that processing equipment be designed and maintained to permit adequate cleaning. Foam cleaning systems address GMP requirements by enabling cleaning of complex surface geometries without disassembly, reducing the risk of residue accumulation in hard-to-reach areas. The foam medium clings to vertical surfaces, ensuring detergent reaches areas that liquid spray cannot effectively coat.

• CE (European Machinery Directive): Henger Technology manufactures all hygiene equipment including the Foam Cleaning System to CE conformity standards, covering electrical safety, pressure vessel integrity, chemical handling safeguards, emergency stop systems, and technical file documentation. This compliance is essential for equipment exported to European Union markets.

• Halal Certification Requirements: Halal-certified slaughter facilities must demonstrate that all equipment surfaces are thoroughly cleaned and free of prohibited substance residue between halal and non-halal processing. The Foam Cleaning System supports halal compliance by delivering consistent, verifiable surface cleaning that can be documented for religious authority inspection.

Matching Henger Equipment Process Solutions

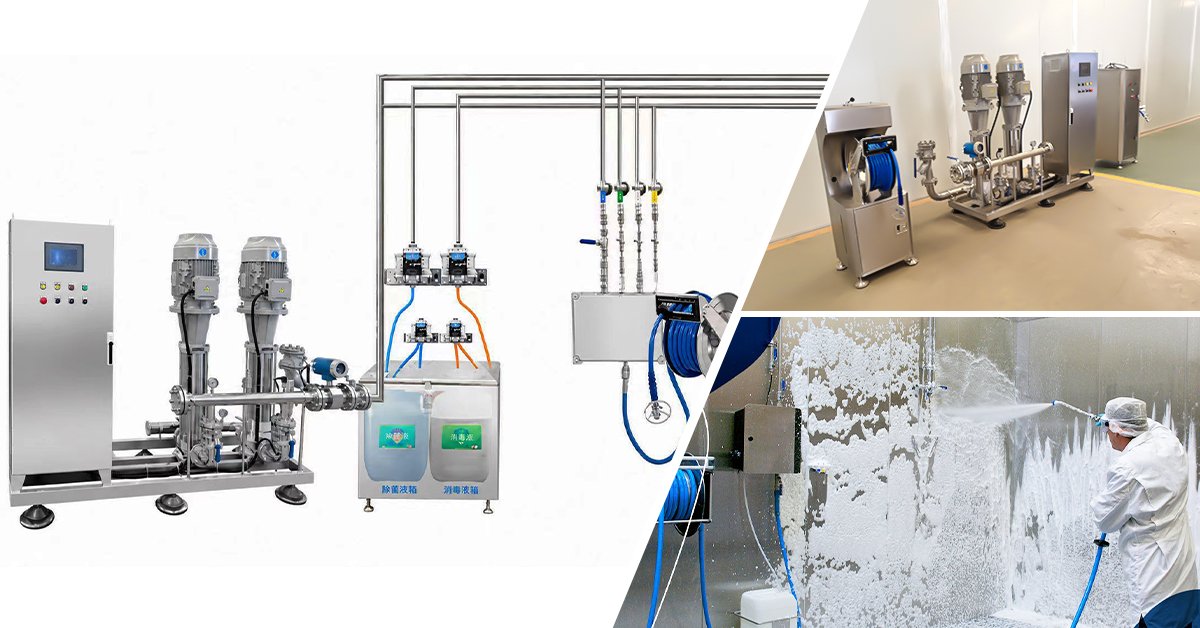

The Henger Technology Foam Cleaning System is designed to address each pain point through a structured four-phase cleaning process. The system consists of a central foam generation unit, distribution piping to strategically placed foam stations throughout the processing area, and dedicated foam application guns with integrated rinse and sanitizer functions. All wetted components are constructed in food-grade stainless steel 304:

• Phase 1 — Foam Application: The central unit mixes concentrated cleaning detergent with water and compressed air to generate a dense, clinging foam. Operators apply the foam to equipment surfaces using handheld foam guns. The foam expands to cover large surface areas rapidly, clinging to vertical, overhead, and irregular surfaces without dripping off. This extended contact time allows the detergent to penetrate and break down fat, protein, and biofilm residues that liquid sprays cannot effectively address.

• Phase 2 — Contact Time: The foam remains on surfaces for the manufacturer-specified contact period, typically 5 to 15 minutes depending on soil level and detergent type. During this period, the active cleaning agents break down organic matter at the molecular level. The visible foam layer allows operators to confirm that all target surfaces have been covered, eliminating the blind spots that occur with clear liquid sprays.

• Phase 3 — Rinse: After the contact period, operators use the same gun in rinse mode to remove the foam and dissolved soil with clean water. The rinse function uses significantly less water than traditional high-pressure hose washing because the detergent has already done the chemical work. The foam residue carries away the broken-down organic matter, leaving surfaces visibly clean.

• Phase 4 — Sanitizing (Optional): For surfaces requiring additional microbial reduction, a sanitizing rinse applies food-grade sanitizer through the same gun system. This optional phase provides an extra layer of protection before production resumes, particularly important for food contact surfaces and areas processing high-risk products.

The Foam Cleaning System integrates with complementary Henger Technology hygiene equipment to build a comprehensive plant sanitation infrastructure. For container cleaning, the Crate Washing Machine handles automated washing of plastic and stainless steel crates. For personnel hygiene at entry points, the Automatic Boot Washer and Hand Washing and Disinfection Station provide controlled decontamination for staff entering processing zones. For cleanroom entry compliance, the Air Shower and Disinfection Channel removes particulate contamination from personnel. Together, these systems form an integrated approach to slaughterhouse sanitation that supports HACCP compliance across all plant zones.

Overseas Factory Real Cases With Henger Machines

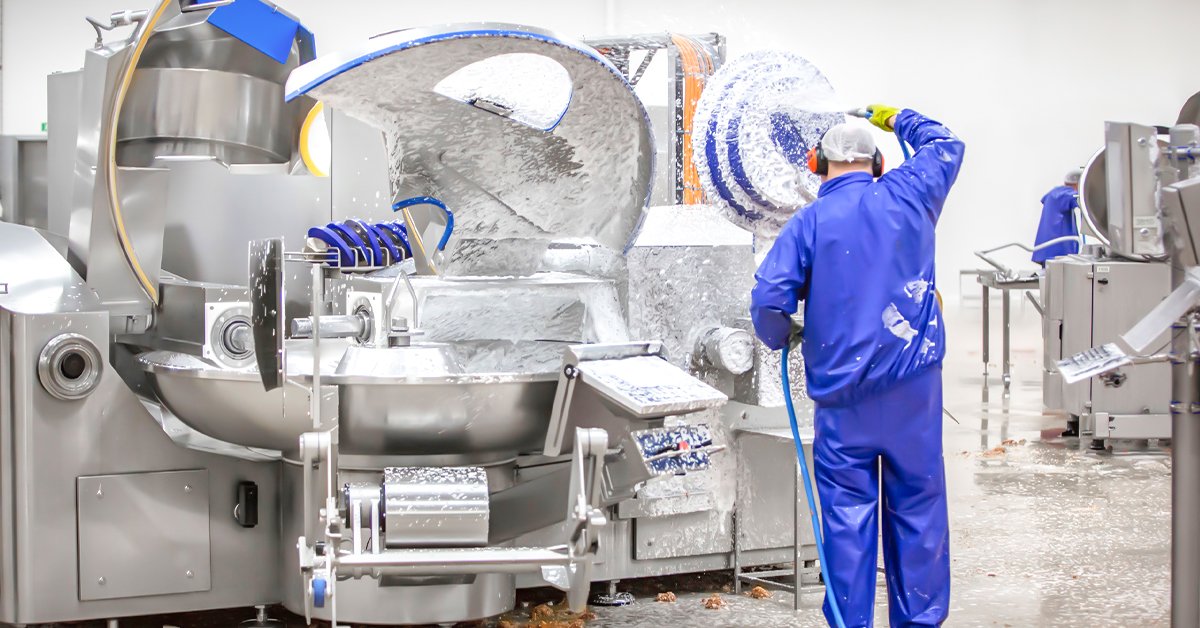

Henger Technology hygiene equipment has been deployed in slaughterhouse projects across multiple continents. The following cases illustrate how foam cleaning systems integrate into complete processing facility sanitation programs:

South Africa — 300 Head/Day Cattle Halal Slaughter Line (Completed 2024)

Full case study: https://www.hengerglobal.com/south-africa-300-head-cattle-halal-slaughter-line-project-case.html

This halal cattle slaughter facility operates with strict religious requirements for equipment cleanliness between processing batches. Henger Technology supplied a Foam Cleaning System with three foam stations positioned at the Halal Rotating Slaughter Box area, the Cutting Conveyor Line processing tables, and the evisceration station. Operators apply foam to all food contact surfaces between halal processing batches, allowing the required contact time before rinsing with clean water. The system has reduced water consumption for surface cleaning by approximately 50 percent compared to the previous hose-based method, while improving the consistency and verifiability of cleaning results for halal compliance inspection.

Venezuela — 500 Head/Day Pig Slaughter Line (Completed 2024)

Full case study: https://www.hengerglobal.com/venezuela-500-head-pig-slaughter-line-project-case.html

This pig slaughter facility processes 500 head per day using a semi-automated line that includes the Cutting Conveyor Line, scalding, dehairing, and evisceration stations. Protein and fat residue accumulate rapidly on processing tables, guide rails, and conveyor frames during each shift. Henger Technology installed a Foam Cleaning System with foam stations at the kill floor, the cutting and boning area, and the packaging zone. The foam application covers large surface areas quickly during end-of-shift cleaning, and the extended contact time effectively breaks down the heavy organic soil load characteristic of pig processing. Plant management reports that cleaning cycle time has been reduced by approximately 30 percent while achieving more consistent cleaning verification results.

Equipment Selection Guide

Selecting the right foam cleaning configuration depends on facility size, number of cleaning zones, daily production volume, and target compliance level. The following comparison helps plant managers evaluate options:

Daily Operation & Maintenance Tips

Maintaining consistent foam cleaning performance requires a structured maintenance program. Henger Technology provides spare parts lists and maintenance schedules with every Foam Cleaning System. The following practices keep the equipment operating at designed performance levels:

• Daily: Inspect foam guns for blockage or wear, check detergent concentrate level in the supply tank, verify compressed air pressure at the central unit, test foam quality at each station by observing foam density and cling time, and flush foam guns with clean water after each cleaning cycle to prevent detergent crystallization in nozzles.

• Weekly: Inspect all detergent supply lines for leaks or degradation, check water filter elements at the central unit, test detergent dosing pump calibration by measuring concentrate consumption against expected usage, clean compressed air filter and moisture trap, and conduct ATP swab testing on randomly selected cleaned surfaces to verify cleaning effectiveness.

• Monthly: Inspect all foam gun nozzles for wear and replace as needed, check detergent dosing pump diaphragm and seals, inspect distribution piping for corrosion or buildup, calibrate pressure gauges and flow meters at the central unit, and perform deep cleaning of the detergent supply tank interior.

• Quarterly: Replace all filter elements, inspect and tighten all electrical connections in the control panel, check compressor output pressure and volume, lubricate any moving parts on the central unit, and conduct a full system performance test measuring foam density, detergent concentration, water pressure, and air pressure at each station.

• Spare parts management: Maintain stocked inventory of high-wear components including foam gun nozzles, detergent pump seals, filter elements, O-rings, and supply hose sections. Henger Technology maintains a ready stock for rapid dispatch to overseas clients within the 12-month warranty period and beyond.

• Remote support: Henger Technology provides 7x24 hours online technical support and remote troubleshooting for all hygiene equipment. For issues requiring hands-on intervention, overseas engineers are available for on-site maintenance and staff retraining visits.

Industry Frequently Asked Questions

Q1: What types of detergents and sanitizers are compatible with the Henger Foam Cleaning System?

The Foam Cleaning System is compatible with standard food-grade alkaline detergents, acid descalers, and quaternary ammonium sanitizers commonly used in meat processing facilities. The central unit's chemical-resistant materials handle a wide range of cleaning chemicals. Henger Technology provides a compatibility chart with the equipment and recommends specific detergent types based on the soil profile of the target processing area.

Q2: How much water does the foam cleaning system save compared to traditional hose washing?

Foam cleaning typically reduces water consumption by 40 to 60 percent compared to traditional high-pressure hose washing. The foam applies detergent with minimal water volume, and the rinse phase uses significantly less water because the chemical has already broken down the soil. Actual savings depend on facility size, cleaning frequency, and the previous cleaning method used.

Q3: Can the foam cleaning system be installed in an existing processing facility?

Yes. The Foam Cleaning System can be installed in both new and existing facilities. Henger Technology engineers assess the available space, compressed air supply, water source, and detergent storage requirements to design a station layout that integrates with the existing facility without disrupting production. The central unit can be positioned in a utility area with distribution piping routed to foam stations in the processing zones.

Q4: How long does the foam need to remain on surfaces before rinsing?

The recommended contact time depends on the detergent type and soil level. For routine daily cleaning of processing surfaces, a contact time of 5 to 10 minutes is typical. For heavy soil loads or periodic deep cleaning, contact time may extend to 15 minutes. The foam remains visibly on surfaces during the contact period, allowing operators to confirm complete coverage before rinsing.

Q5: Does Henger Technology provide installation and training for overseas clients?

Yes. Henger Technology provides overseas engineer on-site installation, commissioning, and operator training as part of the equipment supply. Training covers foam system operation, detergent handling and safety, cleaning procedure development, and cleaning verification protocols. A 12-month warranty applies after commissioning, with 7x24 hours remote technical support and ready-stock spare parts available for rapid dispatch.

Ending Consultation + Related Blog Links

Foam cleaning technology represents a practical and effective approach to reducing water consumption while improving cleaning consistency in slaughterhouse environments. The Henger Technology Foam Cleaning System delivers controlled detergent application with extended contact time, enabling thorough cleaning of complex surface geometries that traditional hose washing cannot effectively address. When combined with complementary hygiene equipment including the Crate Washing Machine, Automatic Boot Washer, and Hand Washing and Disinfection Station, it forms part of an integrated plant sanitation infrastructure that supports HACCP compliance and protects product quality.

Founded in 2018 with over 60 equipment invention patents, university partnerships with Tianjin University of Commerce and Binzhou University, and an engineering team averaging 15+ years of experience, Henger Technology manufactures all hygiene equipment in-house at our Shandong facility. We invite you to visit our booth at Seoul Food & Hotel 2026 to see the Foam Cleaning System and our full range of slaughter and hygiene equipment in person.

Contact Henger Technology today to discuss your foam cleaning system requirements. Visit hengerglobal.com to explore our complete hygiene equipment range and request a custom consultation.
