Crate Washing Machine Selection Guide: Reducing Cross-Contamination in Meat Processing Plants

Meat processing plants rely on plastic and stainless steel crates, tubs, and containers to move raw meat, offal, and by-products between processing stations throughout the production cycle. During each shift, these containers accumulate blood, fat, protein residue, and bacterial loads that manual hose washing cannot consistently remove. Without automated crate washing equipment, reusable containers become a primary cross-contamination vector, spreading pathogens from raw material zones to finished product areas and undermining HACCP compliance efforts.

Henger Technology manufactures the Crate Washing Machine specifically designed for meat processing plants that need reliable, repeatable container sanitation. This guide examines the cross-contamination risks associated with inadequate crate washing, reviews HACCP and GMP compliance requirements for container cleaning, and provides practical selection criteria for plant managers evaluating automated HACCP cleaning equipment. With over 60 equipment invention patents and an engineering team averaging 15+ years of industry experience, Henger Technology delivers meat plant hygiene equipment that supports food safety compliance across global meat export markets.

Factory Operation Core Pain Points

• Cross-contamination from inadequately cleaned crates: Crates used to transport raw offal or contaminated material are then reused for clean product handling without proper washing, creating direct bacterial transfer paths between dirty and clean zones. This is one of the most frequently cited critical deficiencies in HACCP audit reports.

• Manual washing inconsistency and labor cost: Workers using hoses, brushes, and generic detergents produce variable cleaning results depending on individual effort, fatigue, and time pressure. Manual washing also ties up multiple workers per shift, increasing labor overhead without guaranteeing consistent microbial reduction.

• Insufficient washing throughput during peak production: Manual crate washing typically handles 100 to 200 crates per hour, which cannot keep pace with industrial-scale poultry or pig slaughter lines generating 500+ soiled containers per hour during peak operation.

• Excessive water and detergent consumption: Open-hose manual washing uses significantly more water per crate than engineered wash chambers with recirculation systems. Detergent dosing is imprecise without automated metering, resulting in chemical waste and potential residue on food contact surfaces.

• No validation records for HACCP compliance: Manual washing produces no documented evidence of wash temperature, duration, or detergent concentration. HACCP auditors increasingly require verifiable cleaning records, which manual processes cannot provide without additional manual logging that is itself prone to error.

• Chemical residue risks from improper rinsing: When workers apply detergent manually without controlled rinse cycles, chemical residue can remain on crate surfaces and subsequently contact food products, creating both food safety risks and potential regulatory non-conformance.

Industry Hygiene & Production Compliance Standards

Container washing is not optional housekeeping — it is a regulated critical control point under multiple food safety frameworks. Plant managers must understand the specific requirements that apply to crate and container sanitation:

• HACCP (Hazard Analysis and Critical Control Points): Reusable containers that contact raw meat must be identified as a contamination hazard, with washing procedures established as a critical control point. The HACCP plan must specify wash temperature, detergent concentration, contact time, and rinse parameters, with monitoring records maintained for audit verification.

• ISO 9001 (Quality Management System): Cleaning processes for food contact containers must be documented, validated, and periodically verified. ISO 9001 requires that crate washing procedures be standardized, with personnel trained on documented procedures and equipment maintained according to specified schedules.

• GMP (Good Manufacturing Practice): GMP regulations require that containers and equipment used in food processing be constructed and maintained to permit adequate cleaning. Containers must be washed at frequencies that prevent accumulation of organic residue, and washing equipment itself must be designed for hygienic operation with accessible clean-in-place capability.

• BRCGS (Brand Reputation Compliance Global Standard): BRCGS-certified facilities must demonstrate that container cleaning is controlled, monitored, and verified. This includes maintaining cleaning schedules, conducting periodic swab testing on washed crates, and ensuring that washing equipment is calibrated and maintained to deliver consistent results.

• CE (European Machinery Directive): Henger Technology manufactures all hygiene equipment including the Crate Washing Machine to CE conformity standards, covering electrical safety, mechanical guarding, emergency stop systems, and technical file documentation. This compliance is essential for equipment exported to European Union markets.

Matching Henger Equipment Process Solutions

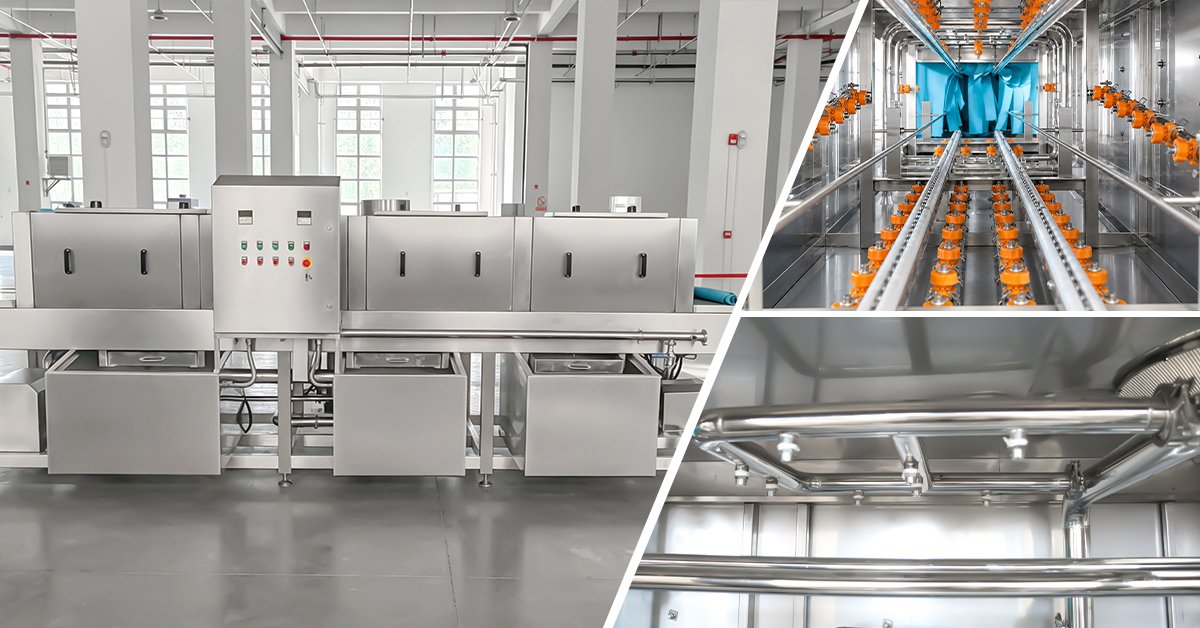

The Henger Technology Crate Washing Machine is engineered to address each of the pain points identified above through a multi-stage automated washing process. The equipment is constructed entirely in food-grade stainless steel 304, with a tunnel-style design that accepts crates via an infeed conveyor and passes them through sequential wash zones:

• Stage 1 — Pre-Rinse Zone: High-volume nozzles remove loose soil, blood, and bulk organic matter using recycled water from the main wash zone, reducing fresh water consumption while pre-conditioning crate surfaces for detergent action.

• Stage 2 — Main Wash Zone: Detergent solution at controlled temperature (typically 60 to 70 degrees Celsius) is sprayed at high pressure from top, bottom, and side nozzles to remove fat, protein, and bacterial films. The detergent dosing system automatically meters cleaning chemical concentration to maintain consistent cleaning effectiveness.

• Stage 3 — Fresh Water Rinse Zone: Clean potable water removes all detergent residue from crate surfaces, ensuring no chemical contamination contacts food products on subsequent use. The rinse water drains to the pre-rinse tank for recirculation, reducing total water consumption.

• Stage 4 — Sanitizing Rinse (Optional): For plants requiring additional microbial reduction, an optional sanitizing rinse zone applies food-grade sanitizer at controlled concentration, providing an extra layer of protection before crates re-enter production.

The Crate Washing Machine integrates seamlessly with other Henger Technology hygiene equipment to build a comprehensive plant sanitation system. For personnel hygiene at entry points, the Automatic Boot Washer and Hand Washing and Disinfection Station provide controlled decontamination for staff. For environmental cleaning, the Foam Cleaning System enables efficient CIP-style sanitizing of processing equipment and facility surfaces. For larger containers and meat trolleys, the Meat Cart Washing Machine handles oversized items that do not fit standard crate dimensions. Together, these systems form an integrated hygiene infrastructure that supports HACCP compliance across all plant zones.

Overseas Factory Real Cases With Henger Machines

Henger Technology hygiene equipment has been deployed in slaughterhouse projects across three continents. The following cases illustrate how crate washing and container sanitation integrate into complete processing facility operations:

Venezuela — 5,000 Birds/Day Poultry Slaughter Line (Completed 2025)

Full case study: https://www.hengerglobal.com/venezuela-5-000-birds-day-chicken-slaughter-line-project-case.html

In this poultry processing project, plastic crates are used to transport live birds from receiving to the hanging area, and stainless steel tubs carry eviscerated offal through the inspection line. The high daily throughput of 5,000 birds generates substantial soiled container volume per shift. Henger Technology supplied a tunnel-type Crate Washing Machine integrated into the plant layout, positioned between the dirty container collection area and the clean container staging zone. The washer processes approximately 400 to 500 crates per hour, keeping pace with the slaughter line output. Wash water temperature is maintained at 65 degrees Celsius with automatic detergent dosing, and the fresh water rinse ensures no chemical residue on food contact surfaces. Plant management reports that HACCP audit findings related to container hygiene have been effectively reduced since the automated washing system was commissioned.

South Africa — 300 Head/Day Cattle Halal Slaughter Line (Completed 2024)

Full case study: https://www.hengerglobal.com/south-africa-300-head-cattle-halal-slaughter-line-project-case.html

This cattle slaughter facility uses stainless steel meat carts and containers to transport quarters and offal from the Cutting Conveyor Line to the cold storage area. Henger Technology provided a Meat Cart Washing Machine configured for the specific cart dimensions used in this plant, along with a Crate Washing Machine for smaller containers used at the Halal Rotating Slaughter Box and evisceration stations. The integrated washing approach ensures that all food contact containers are cleaned to consistent standards before re-entering production, supporting the facility's halal certification requirements which mandate thorough cleaning of all equipment between halal and non-halal processing.

Equipment Selection Guide

Selecting the right crate washing configuration depends on daily container volume, crate dimensions, available floor space, and target compliance level. The following comparison helps plant managers evaluate options:

Daily Operation & Maintenance Tips

Maintaining consistent washing performance requires a structured maintenance program. Henger Technology provides spare parts lists and maintenance schedules with every Crate Washing Machine. The following practices keep the equipment operating at designed performance levels:

• Daily: Inspect spray nozzles for clogging and clean as needed, check detergent and sanitizer levels in dosing tanks, verify wash zone temperature readings against setpoints, and drain and flush the pre-rinse tank at end of shift to remove accumulated solids.

• Weekly: Inspect all water filters and strainers, clean the main wash tank heating element, check conveyor chain tension and lubrication, test detergent dosing pump calibration, and conduct ATP swab testing on randomly sampled washed crates to verify cleaning effectiveness.

• Monthly: Inspect all spray nozzles for wear and replace as needed, check pump seals and impeller condition, inspect conveyor belt for tracking and wear, calibrate temperature sensors against a reference thermometer, and perform deep cleaning of the machine interior including tank walls and pipework.

• Quarterly: Replace water filter elements, inspect and tighten all electrical connections in control panel, check heating element resistance and insulation, lubricate conveyor drive bearings, and conduct a full system performance test measuring wash temperature, pressure, and detergent concentration at each zone.

• Spare parts management: Maintain stocked inventory of high-wear components including spray nozzles, filter elements, pump seals, conveyor chain links, and dosing pump tubes. Henger Technology maintains a ready stock for rapid dispatch to overseas clients within the 12-month warranty period and beyond.

• Remote support: Henger Technology provides 7x24 hours online technical support and remote troubleshooting for all hygiene equipment. For issues requiring hands-on intervention, overseas engineers are available for on-site maintenance and staff retraining visits.

Industry Frequently Asked Questions

Q1: What types of crates and containers can the Henger Crate Washing Machine handle?

The Crate Washing Machine is designed for standard plastic and stainless steel meat processing crates, tubs, and containers used in poultry, cattle, pig, and sheep slaughter lines. Custom configurations can be engineered for non-standard container dimensions or mixed-format operations. The adjustable conveyor speed and nozzle positioning accommodate various crate heights and widths.

Q2: How much water does the automated crate washer consume compared to manual washing?

The three-stage and four-stage washers use a recirculation system where pre-rinse water is sourced from the main wash tank overflow, and fresh water rinse overflow feeds back to the pre-rinse stage. This design typically reduces fresh water consumption by 40 to 60 percent compared to open-hose manual washing, depending on daily throughput and crate soil level.

Q3: Can the crate washing machine be integrated into an existing processing line?

Yes. The Crate Washing Machine can be installed as a standalone unit or integrated into an existing plant layout. Henger Technology engineers assess the available floor space, container flow pattern, and utility connections to position the washer for optimal dirty-to-clean container routing without crossing contamination zones. The machine requires standard electrical supply, potable water inlet, and drainage connection.

Q4: What wash temperature and detergent does the system use?

The main wash zone operates at 60 to 70 degrees Celsius, which is effective for removing fat and protein residues while remaining within the safe operating range for standard food-grade detergents. The system is compatible with standard alkaline food processing detergents and sanitizers. Detergent concentration is automatically controlled via integrated dosing pumps, eliminating the variability of manual chemical application.

Q5: Does Henger Technology provide installation and training for overseas clients?

Yes. Henger Technology provides overseas engineer on-site installation, commissioning, and operator training as part of the equipment supply. Training covers machine operation, daily maintenance procedures, detergent handling, and cleaning verification protocols. A 12-month warranty applies after commissioning, with 7x24 hours remote technical support and ready-stock spare parts available for rapid dispatch.

Ending Consultation + Related Blog Links

Automated crate washing is a critical investment for any meat processing plant committed to HACCP compliance and cross-contamination prevention. The Henger Technology Crate Washing Machine delivers consistent, validated container sanitation through multi-stage washing with controlled temperature, detergent dosing, and fresh water rinsing. When combined with complementary hygiene equipment including the Automatic Boot Washer, Foam Cleaning System, and Hand Washing and Disinfection Station, it forms part of an integrated plant sanitation infrastructure that supports regulatory compliance and protects product quality.

Founded in 2018 with over 60 equipment invention patents, university partnerships with Tianjin University of Commerce and Binzhou University, and an engineering team averaging 15+ years of experience, Henger Technology manufactures all hygiene equipment in-house at our Shandong facility. We invite you to visit our booth at Seoul Food & Hotel 2026 to see the Crate Washing Machine and our full range of slaughter and hygiene equipment in person.

Contact Henger Technology today to discuss your crate washing requirements. Visit hengerglobal.com to explore our complete hygiene equipment range and request a custom consultation.
