Product Introduction:

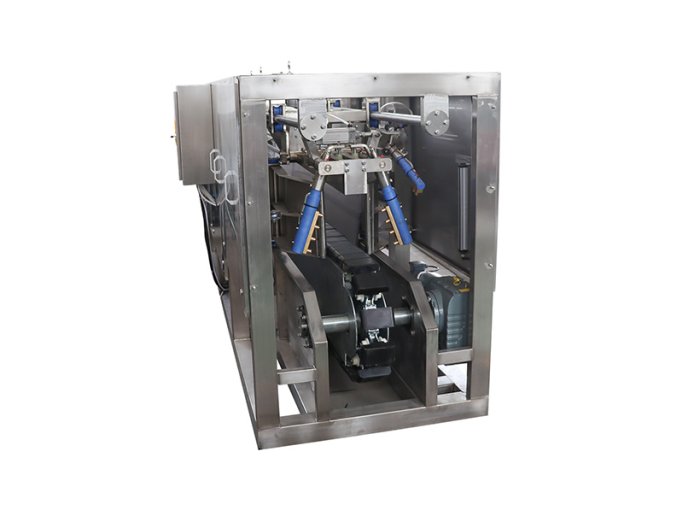

The Three-Point Electric Stunner is the core stunning equipment for modern high-volume pork slaughter lines. By applying electrical current across three contact points (head + both sides of the body), it induces immediate, reliable unconsciousness in 1-3 seconds — delivering consistent, stress-free carcasses for premium meat quality. With an escape rate below 1%, it is the preferred choice for mid-to-large scale slaughterhouses.

(17) Reviews

PRODUCT DETAILS

Key Highlights

Highlight

Description

Escape Rate <1%

Voltage auto-regulates, precision control minimizes escape

Versatile

Accommodates pigs from 60-150 kg across breeds and sizes

Humane Effect

1-3 sec unconsciousness, smooth bleeding transition

High ROI

Reduced labor + high throughput = fast investment return



Working Principle

Pig Entry → Three Electrodes Contact (head + both sides) → Stunning Shock (100-380V)

Instant unconsciousness achieved → Transfer to bleeding


Stunning Parameters (adjustable):

· Voltage: 100-380V (adjustable by breed and weight)

· Stunning Duration: 1-3 seconds

· Frequency: 50-60Hz


Technical Specifications

Parameter

Reference

Capacity

200-1,000 heads/hr

Pig Weight Range

60-150 kg

Stunning Voltage

100-380V (adjustable)

Stunning Method

Three-point simultaneous

Escape Rate

<1%

Material

SUS304 Stainless Steel

Control System

Auto control, linkable to conveyor

Power

380V / 50Hz 3-Phase



Applications

Scale

Capacity

Recommended Config

Standard

200-300/hr

Single unit + hanging conveyor

Large

500-1,000/hr

Dual units + high-speed hanging line



Why Three-Point Over Handheld?

Factor

Three-Point Stunner

Handheld Stunner

Stability

High

Moderate

Escape Rate

<1%

3-5%

Operators

1 monitor only

1-2 operators

Best Scale

Mid-to-large

Small-scale

Long-term ROI

High efficiency

Low investment, low output

Due to equipment updates, there may be parameter differences or component brand differences. Images and parameters are for reference only. Please contact sales for details.
