Product Introduction:

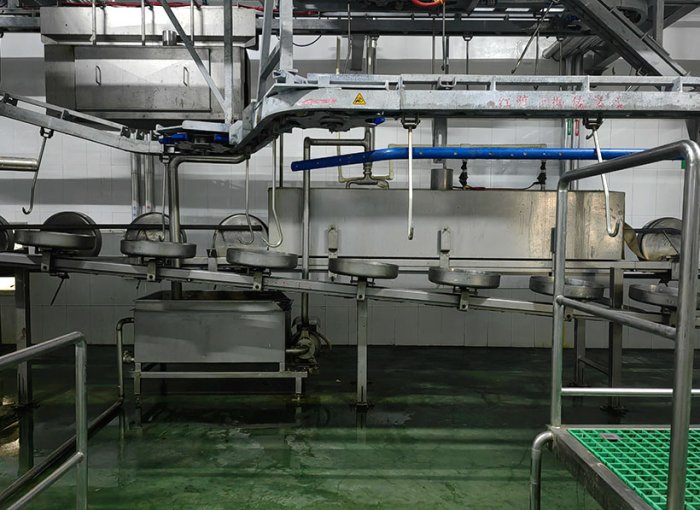

The Synchronous Inspection Line is the core rail system that maintains one-to-one linkage between each pork carcass and its corresponding set of offal (green offal + red offal) throughout the government-required veterinary inspection process. As the carcasses move along the inspection rail, offal trays carry each animal's organs alongside its corresponding carcass — enabling veterinarians to simultaneously evaluate all organs and match findings to the specific animal.

(21) Reviews

PRODUCT DETAILS

Key Highlights

Highlight

Description

One-to-One Linkage

Each carcass always matched to its own organ set — no mixing

Dual Offal Streams

Separate green (digestive) and red (heart/liver/lungs) trays

Inspection Speed

Matches line capacity — 50-1,000 heads/hr

Sanitary Design

Open rail + tray system — easy to clean between batches

Regulatory Ready

Meets GB 12694-2016 and national meat inspection requirements

Traceability

Complete animal-to-organ mapping for any required recall



Working Principle

Evisceration complete → Carcass + offal enter synchronous inspection rail

Green offal tray (stomach/intestines) travels alongside left side

Red offal tray (heart/liver/lungs) travels alongside right side

Veterinarian inspects all organs in parallel

Passed: Offal released | Failed: Carcass + organs quarantined simultaneously

Offal separated for processing → Carcass proceeds to splitting


Technical Specifications

Parameter

Reference

Capacity

50-1,000 heads/hr

Carcass Rail

Overhead rail, continuous movement

Offal Trays

Individual trays per animal, labeled/color-coded

Tray Types

Green offal tray, Red offal tray

Line Length

Customized by throughput requirement

Material

SUS304 Stainless Steel

Control

Speed adjustable via variable frequency drive

Due to equipment updates, there may be parameter differences or component brand differences. Images and parameters are for reference only. Please contact sales for details.
