Product Introduction:

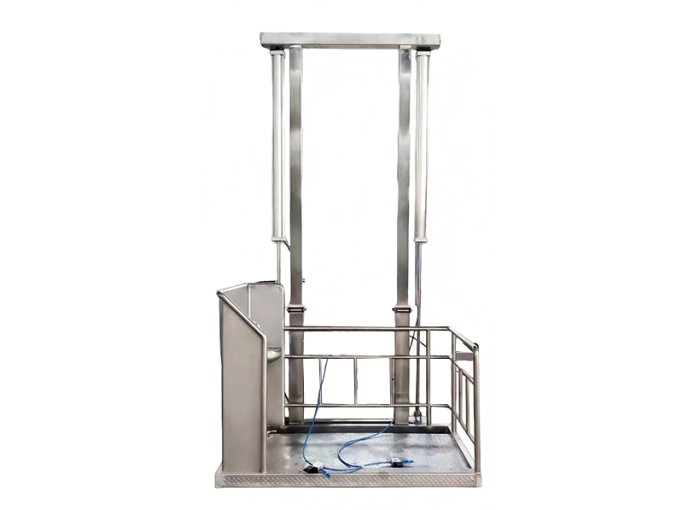

The Pneumatic Lifting Platform is an ergonomic aid used during the evisceration stage. It elevates the hanging carcass to a comfortable working height for operators performing offal removal, ensuring clean, precise work without operator fatigue or risk of cross-contamination. The single-column pneumatic design is compact, reliable, and easy to clean — ideal for slaughter lines of all scales.

(15) Reviews

PRODUCT DETAILS

Key Highlights

Highlight

Description

Ergonomic Design

Elevates carcass to optimal working height — reduces operator fatigue

Pneumatic Drive

Single-column air cylinder — simple, reliable, easy maintenance

Adjustable Height

Variable height settings for different operator preferences

Clean Design

No chains or exposed mechanisms — easy to sanitize

Space Saving

Compact single-column footprint — fits narrow inspection lanes

Durable

Built for continuous industrial use, minimal wear parts



Working Principle

Carcass on rail → Alights at evisceration station

Operator activates pneumatic lift → Carcass raised to working height

Offal removal performed at ergonomic height

Operator releases lift → Carcass lowered and transferred to inspection


Technical Specifications

Parameter

Reference

Lift Type

Single-column pneumatic cylinder

Height Adjustment

Pneumatic (air pressure regulated)

Max Load

Suitable for full carcass (35-100 kg per side)

Material

SUS304 Stainless Steel

Control

Foot pedal or hand lever

Application

Evisceration, offal inspection

Due to equipment updates, there may be parameter differences or component brand differences. Images and parameters are for reference only. Please contact sales for details.
