Hand Washing and Disinfection Station Setup for HACCP-Compliant Slaughter Facilities

Hand hygiene is one of the most direct transmission pathways for microbial contamination in slaughter facilities. Workers handling carcasses, tools, and equipment surfaces throughout a processing shift can spread pathogens from raw materials to finished product contact surfaces through inadequately washed hands. Despite its critical role in food safety compliance, hand hygiene at facility entry points and within production zones is often treated as a manual process with inconsistent results. The Hand Washing and Disinfection Station automates the hand hygiene sequence, replacing variable manual procedures with a standardized, sensor-activated process that removes operator discipline as a risk factor. For facilities implementing HACCP hand hygiene protocols, the installation of dedicated hand washing stations at slaughter facility entry points and zone transitions provides a verifiable, documented hygiene control measure that supports audit readiness and reduces contamination risk.

Factory Operation Core Pain Points

• Inconsistent Manual Hand Washing: Manual hand washing procedures vary significantly between workers and across shifts. Operators under production pressure may skip the full soap-wash-rinse-sanitize sequence, wash for insufficient duration, or miss areas such as wrists and between fingers. This inconsistency creates gaps in the hygiene barrier that HACCP auditors can identify through observation and documentation review.

• Recontamination Through Touch: Conventional hand washing setups with manual faucets, soap dispensers, and door handles introduce recontamination at the point of use. After washing, operators touch contaminated surfaces — the faucet handle, the soap dispenser pump, the door push plate — negating the hygiene benefit of the hand washing procedure. A sensor-activated hand washing station eliminates these touch points from the hygiene sequence.

• Lack of Documented Hand Hygiene Compliance: HACCP prerequisite programs require documented control measures for personnel hygiene. Manual hand washing procedures are difficult to verify and document because there is no automated record of whether, when, or how completely each worker performed hand hygiene upon entering a production zone. Without automated monitoring, facilities rely on supervisory observation, which is not continuous and cannot cover every entry event.

• Absentee Hand Hygiene After Breaks: Hand hygiene compliance typically declines after meal breaks, rest periods, and shift changes when workers return to production zones in groups. During peak re-entry periods, manual hand washing stations become bottlenecks, and workers may bypass hand hygiene entirely rather than wait in line. Dedicated multi-station hand washing and disinfection stations prevent queuing bottlenecks and ensure throughput matches workforce flow.

• Pathogen Transfer Through Hand Contact: In slaughter facilities, workers move between raw material handling, evisceration, carcass splitting, and packaging areas. Hands that come into contact with hide, viscera, or processing tools can transfer Salmonella, E. coli, Listeria, and Campylobacter to cleaned carcass surfaces or packaging materials. A disinfection station at each zone transition provides a barrier against pathogen transfer between production zones with different hygiene classifications.

• Audit Non-Conformance for Personnel Hygiene: Food safety audits routinely cite hand hygiene deficiencies, including inadequate station placement, absence of automated hand washing equipment at slaughter facility entry points, and lack of documented hand hygiene compliance monitoring. These findings result in corrective action requirements and can delay or prevent certification, affecting market access for export-oriented processors.

Industry Hygiene & Production Compliance Standards

Hand hygiene at slaughter facility entry points is regulated by multiple food safety frameworks. The Hand Washing and Disinfection Station serves as the physical implementation of personnel hygiene requirements that these standards mandate. The following frameworks inform equipment specification, placement, and operational protocols:

• HACCP (Hazard Analysis and Critical Control Points): Personnel hygiene, including hand washing, is classified as a prerequisite program within the HACCP framework. The prerequisite program must identify hand hygiene as a control measure for microbiological hazards, specify the hand washing procedure and frequency, and document compliance monitoring. A sensor-activated hand washing station provides the standardized, verifiable control that HACCP auditors expect. The station operating parameters — soap dispensing volume, wash duration, rinse time, and sanitizer application — can be configured to meet the facility HACCP plan specifications and documented in the prerequisite program records.

• GMP (Good Manufacturing Practice): GMP requirements for slaughter facilities include specifications for hand washing station placement, construction materials, and wastewater management. The equipment should be constructed from food-grade stainless steel with smooth, non-porous surfaces that resist bacterial adhesion and can be effectively cleaned. The station design should incorporate integrated waste water collection and drainage, preventing standing water and floor-level contamination. Hand washing stations should be positioned at every personnel entry point to production areas and at zone transitions within the facility.

• BRCGS and International Food Safety Standards: International food safety standards such as BRCGS include specific requirements for hand washing facilities, including the number and placement of stations relative to personnel count and facility layout, the provision of non-hand-operated taps, and the availability of hand sanitizer at production zone entry points. The Hand Washing and Disinfection Station meets these requirements through sensor-activated controls, integrated sanitizer dispensing, and multi-station configurations that match facility throughput requirements.

Matching Henger Equipment Process Solutions

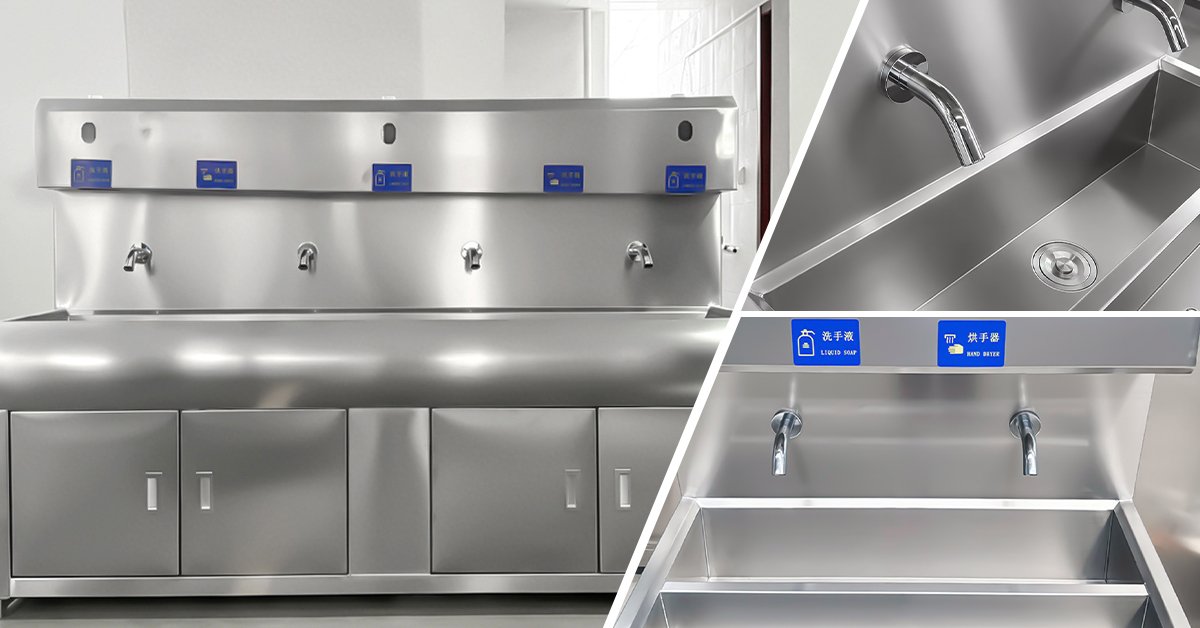

Henger Technology provides integrated Hand Washing and Disinfection Station configurations that automate the complete hand hygiene sequence for slaughter facility entry points and production zone transitions. The equipment standardizes the soap-wash-rinse-sanitize cycle into a hands-free, sensor-activated process that produces consistent hygiene outcomes and supports documented food safety compliance.

Phase 1: Sensor-Activated Soap Dispensing

The hand hygiene sequence begins when the operator places hands under the sensor-activated soap dispenser. The station dispenses a measured volume of food-grade hand soap, ensuring consistent detergent application across all users. The sensor activation eliminates the need to touch a soap dispenser pump or bar soap, removing a recontamination vector from the hygiene sequence. The soap dispensing volume is adjustable during commissioning to match facility HACCP hand hygiene protocol specifications.

Phase 2: Timed Hand Washing Cycle

After soap dispensing, the station initiates a timed hand washing cycle with temperature-controlled water. The water flow is activated by a sensor, not a manual faucet handle, maintaining the hands-free protocol. The wash cycle duration is pre-configured to match the contact time recommended by the facility hygiene plan — typically 20 to 30 seconds of active hand washing with mechanical scrubbing action. The timed cycle removes the variability of manual timing and ensures every operator completes an adequate wash duration.

Phase 3: Automated Rinse

The rinse cycle follows the timed wash phase, with sensor-activated water flow that removes soap residue from hands and wrists. The rinse duration is pre-configured to ensure complete removal of detergent. The integrated basin and drain system directs waste water into the facility drainage network, preventing standing water and floor-level contamination around the station.

Phase 4: Hand Sanitizer Application

Following the rinse cycle, the station dispenses a measured volume of alcohol-based hand sanitizer. The operator rubs the sanitizer over hands and wrists according to the facility protocol. The sanitizer dispensing volume is adjustable, and the station can be configured with different sanitizer formulations based on the target microorganisms and compatibility with the facility HACCP hand hygiene plan. This final step reduces microbial load on cleaned hands before the operator enters the production zone.

Phase 5: Integrated Entry Zone Hygiene Barrier

The Hand Washing and Disinfection Station works as part of a coordinated entry zone hygiene system alongside the Automatic Boot Washer for footwear hygiene and the Air Shower and Disinfection Channel for full-body particulate removal and surface disinfection. Together, these three entry zone stations create a complete personnel hygiene barrier at the slaughter facility entry point, addressing boots, hands, and clothing in a systematic sequence that supports comprehensive HACCP prerequisite program compliance.

Overseas Factory Real Cases With Henger Machines

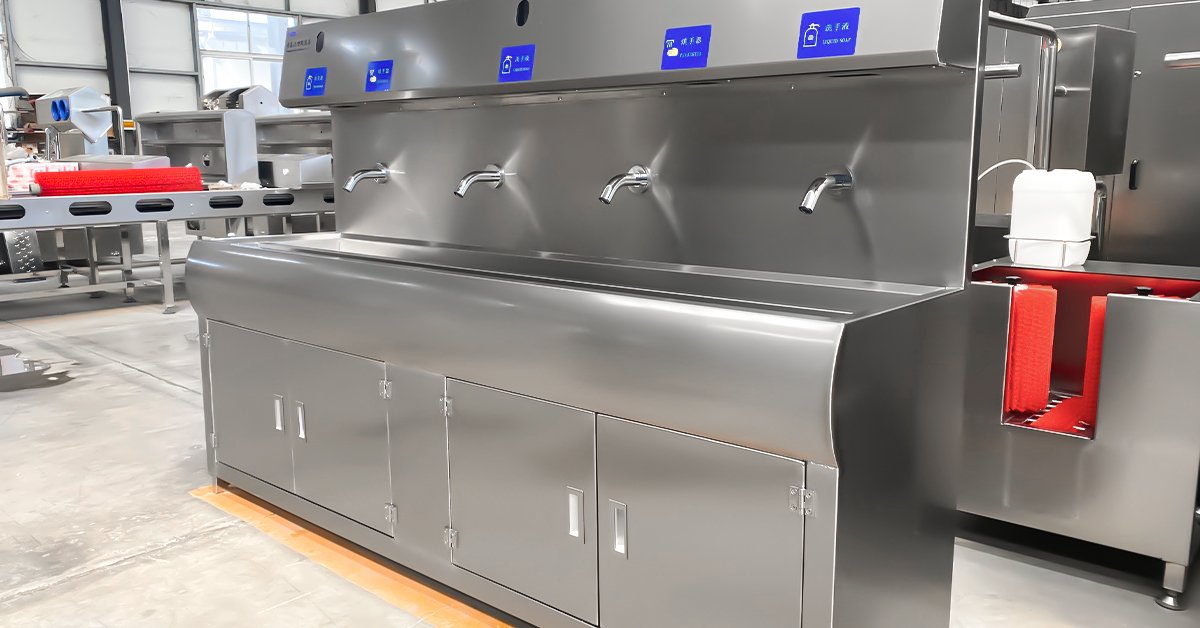

Case 1: South Africa — 300 Head/Day Cattle Halal Slaughter Project

A cattle processing facility in South Africa, operating at 300 head per day for domestic halal markets and Middle East export, included Henger Technology hygiene equipment as part of its processing line configuration. The entry zone hygiene barrier at the slaughter facility entry point included the Hand Washing and Disinfection Station, positioned between the worker changing area and the production floor. The sensor-activated hand washing sequence ensured consistent hand hygiene compliance across multiple shifts, and the hands-free operation removed recontamination touch points. The station configuration supported the facility HACCP hand hygiene documentation requirements by providing standardized, verifiable hand washing procedures that could be referenced in audit submissions. The equipment operated alongside other hygiene stations including the Automatic Boot Washer and the Crate Washing Machine, forming an integrated hygiene infrastructure that supported both food safety compliance and halal certification requirements.

Case 2: Venezuela — 5,000 Birds/Day Poultry Slaughter Project

A poultry processing facility in Venezuela with a daily capacity of 5,000 birds identified personnel hand hygiene as a priority improvement area during a facility upgrade program. The project included the installation of a Hand Washing and Disinfection Station at the production zone entry point to replace manual hand washing procedures that had produced inconsistent hygiene outcomes. The station was configured with timed wash and rinse cycles and integrated hand sanitizer dispensing. The facility integrated the hand washing station with the existing Cutting Conveyor Line and other processing equipment, demonstrating how hygiene equipment can be retrofitted into an operational processing environment without disrupting production flow.

Equipment Selection Guide

The following table compares Henger Technology entry zone hygiene equipment options for slaughter facilities. Equipment selection should be based on workforce size, facility layout, and the hygiene classification requirements of each production zone.

Daily Operation & Maintenance Tips

Daily:

• Refill the Hand Washing and Disinfection Station soap, water, and sanitizer reservoirs before the first shift. Check that all station sensor units activate correctly and dispense the programmed volumes.

• Inspect the basin and drain system for standing water or blockages. Clear any debris from the drain filter and confirm proper water flow into the facility drainage network.

• Wipe down the station exterior surfaces with a food-grade surface sanitizer, paying attention to areas around sensor housings and basin edges where moisture accumulates.

• Verify that the Automatic Boot Washer soap and sanitizer reservoirs are filled and that brush rollers rotate freely without binding.

Weekly:

• Flush the soap and sanitizer dispensing lines with warm water to prevent residue buildup and nozzle clogging. Inspect dispensing nozzles for uniform spray patterns.

• Check the sensor calibration on all Hand Washing and Disinfection Station positions. Clean sensor lenses with a soft, lint-free cloth to maintain detection accuracy.

• Inspect the water temperature control system to verify that water is delivered within the temperature range specified in the facility HACCP hand hygiene plan.

Monthly:

• Conduct a full cycle timing verification on each Hand Washing and Disinfection Station position, measuring the actual soap dispensing, wash, rinse, and sanitizer cycle durations against the programmed settings.

• Inspect and clean the basin and drain trap assembly, removing any accumulated residue. Check the drain pipe connections for tightness and signs of leakage.

• Review hand hygiene compliance records and observe operator usage patterns during peak entry periods to identify any bottlenecks or bypass events.

Quarterly:

• Schedule a Henger Technology service visit for comprehensive inspection of solenoid valves, sensor assemblies, control boards, and plumbing connections on all Hand Washing and Disinfection Station positions.

• Replace wear components including dispensing pump diaphragms, water solenoid valve seals, and sensor housing gaskets using genuine Henger Technology spare parts.

• Update the HACCP hand hygiene standard operating procedure to reflect any changes in station configuration, sanitizer formulation, or compliance requirements.

Industry Frequently Asked Questions

Q1: How many hand washing and disinfection stations does a slaughter facility need?

The number of Hand Washing and Disinfection Station positions depends on workforce size, shift patterns, and facility layout. As a general guideline, one hand washing position per 15-20 production workers entering through a given entry point during a shift change provides adequate throughput without queuing bottlenecks. Facilities with multiple production zones may require stations at each zone transition point in addition to stations at the main facility entry. The station can be configured in 1-4 position configurations to match the specific workforce flow at each installation point. Henger Technology engineers provide station placement and sizing recommendations during the site survey.

Q2: Can the wash and sanitize cycle timing be adjusted?

Yes. The soap dispensing volume, wash cycle duration, rinse duration, and sanitizer dispensing volume are all independently adjustable through the station control panel. The timing can be configured during commissioning to match the facility HACCP hand hygiene protocol specifications, and adjustments can be made later if hygiene requirements change. The programmed cycle parameters are documented in the station operation manual and can be referenced in HACCP prerequisite program records.

Q3: What water supply and drainage does the station require?

The Hand Washing and Disinfection Station requires a connection to the facility potable water supply at standard line pressure, with a hot and cold water mixing valve to provide temperature-controlled water. The station also requires a connection to the facility floor-level drainage network for waste water. The integrated basin and drain system directs all waste water into a single drain outlet, simplifying installation. The station does not require compressed air or dedicated electrical circuits beyond a standard single-phase power connection for the sensor and control systems.

Q4: Is the hand washing station compatible with food-grade sanitizers?

Yes. The Hand Washing and Disinfection Station is constructed from SUS304 stainless steel and chemical-resistant seals and gaskets that are compatible with standard food-grade hand sanitizers, including alcohol-based formulations, quaternary ammonium compounds, and chlorhexidine-based products at concentrations approved for food processing facility use. The sanitizer dispensing system fluid path is designed to resist corrosion and degradation from repeated sanitizer contact. The specific sanitizer should be selected in consultation with the facility hygiene manager.

Q5: How does the hand washing station support HACCP documentation?

The Hand Washing and Disinfection Station can be configured with optional usage counters and cycle completion indicators that provide data for HACCP hand hygiene documentation. The station records the number of completed hand washing cycles per position per shift, providing an objective compliance metric that can be included in HACCP prerequisite program records. The timed, standardized cycle ensures that every documented hand washing event represents a complete soap-wash-rinse-sanitize sequence, eliminating the uncertainty associated with manual hand washing documentation.

Q6: What after-sales support does Henger Technology provide?

Henger Technology provides a 12-month warranty on the Hand Washing and Disinfection Station and all entry zone hygiene equipment, with commonly used spare parts including dispensing pumps, solenoid valves, and sensor units maintained in stock for rapid shipment. Technical support is available 7x24 hours through online remote assistance, and overseas engineers are available for on-site installation, commissioning, and operator training. Remote diagnostic services support troubleshooting for equipment performance issues, minimizing downtime and maintaining consistent hand hygiene compliance for slaughter facility entry zones.

Ending Consultation + Related Blog Links

Hand hygiene is a cornerstone of food safety compliance in slaughter facilities, and the Hand Washing and Disinfection Station provides a standardized, verifiable control that replaces inconsistent manual procedures with automated, documented hygiene sequences. When integrated with the Automatic Boot Washer and Air Shower and Disinfection Channel, the hand washing station forms part of a complete entry zone hygiene barrier that addresses boots, hands, and clothing in a systematic sequence supporting comprehensive HACCP prerequisite program compliance.

Henger Technology was established in 2018 and holds over 60 equipment patents. The company maintains collaborative research partnerships with Tianjin University of Commerce and Binzhou University, and the engineering team brings over 15 years of industry experience to every project. Henger Technology welcomes visitors to explore its hygiene equipment and complete processing line solutions at the Seoul Food and Hotel 2026 exhibition.

Contact Henger Technology today to discuss your facility hand hygiene requirements. Visit hengerglobal.com to explore the complete range of HACCP-compatible hygiene, slaughter, and cold chain equipment, and request a site survey for hand washing and disinfection station placement at your facility entry zones.
