Product Introduction:

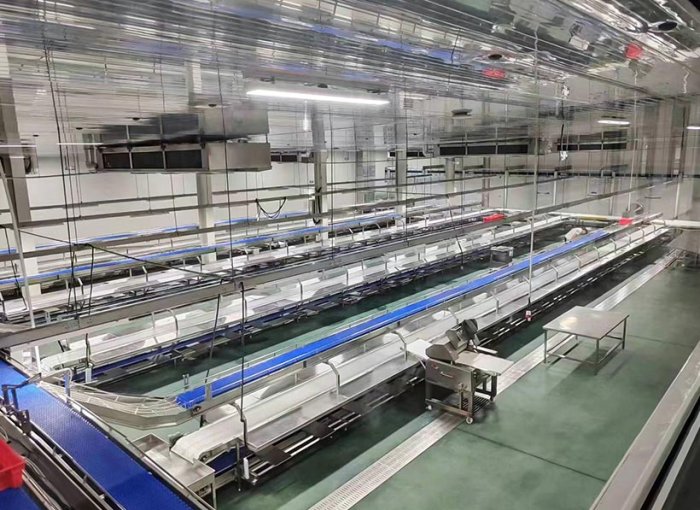

The Cutting Production Line is the automated portioning and grading conveyor system that transforms wholesale cuts into individual retail and foodservice portions. The line integrates cutting stations, weighing cells, and grade classifiers to portion, weigh, and grade each piece — producing consistent, market-specification cuts at high throughput. Operators at finishing workbenches provide final trimming after the automated line.

(19) Reviews

PRODUCT DETAILS

Key Highlights

Highlight

Description

Automated Portioning

Continuous conveyor portioning — high throughput, consistent sizing

In-Line Weighing

Weigh cells grade each portion by weight class automatically

Variable Cut Programs

Multiple cutting recipes for different market cut specifications

Grade Classification

Auto-grading by weight, fat depth, and lean percentage

Touchscreen Control

Recipe selection and line control via touchscreen interface

Hygiene Design

Open-frame stainless construction — full wash-down compatible



Working Principle

Wholesale cuts → Enter cutting line conveyor

Cutting stations perform primary and secondary portioning cuts

Weigh cells measure each portion → Grade classification applied

Auto-grouping by weight/grade class

Portions transferred to finishing workbench for final trim


Technical Specifications

Parameter

Reference

Capacity

50-1,000 heads/hr

Portioning Accuracy

±10g (by weighing system)

Cut Programs

Multiple (customizable recipes)

Material

SUS304 Stainless Steel

Control

Touchscreen HMI

Washing

Full wash-down construction

Power

380V / 50Hz
