Splitting Saw Selection for Cattle Carcass Processing: Precision Cutting and Yield Optimization

Carcass splitting is one of the most physically demanding and technically critical operations in a cattle slaughter line. The splitting saw must divide the carcass along the spinal column with a precise, straight cut, minimizing bone dust, preserving the integrity of valuable cuts, and completing the operation within the line cycle time. The quality of the split directly affects carcass processing yield, hygiene outcomes, and the efficiency of downstream cutting operations. Yet many slaughter plants select splitting saws based on price or habit rather than a systematic evaluation of carcass throughput, saw power, blade geometry, and hygienic design. An undersized saw struggles through heavy carcasses, producing ragged cuts and excessive bone dust. A poorly designed saw creates cleaning challenges and contamination risk. This guide explains the key selection criteria for cattle carcass splitting equipment, the role of the splitting saw in the modern slaughter line, and how Henger Technology supports precise, hygienic splitting operations.

Factory Operation Core Pain Points

• Inconsistent Split Accuracy: Manual or underpowered splitting operations produce cuts that deviate from the spinal column center line, leaving uneven half-carcasses that complicate downstream cutting, portioning, and yield calculation. Inconsistent splits also create jagged surfaces that increase trim loss and reduce the value of premium cuts.

• Excessive Bone Dust and Contamination: Bone dust generated during splitting can deposit on carcass surfaces and adjacent equipment, creating a microbial contamination risk if not controlled. Splitting saws with inadequate dust extraction or poor blade design generate excessive bone dust that requires additional cleaning effort and increases contamination exposure during the splitting step.

• Operator Fatigue and Safety Risk: Carcass splitting is a physically demanding task that requires guiding a heavy saw through thick bone and muscle structure. Operators performing manual splitting across a full shift experience significant fatigue, which reduces cut quality over time and increases the risk of workplace injury. Equipment that reduces operator effort improves both safety and consistency.

• Throughput Bottlenecks: If the splitting operation cannot keep pace with the slaughter line speed, carcasses accumulate at the splitting station, disrupting the entire downstream flow. The splitting saw must complete each cut within the line cycle time, and the station configuration must allow for efficient carcass positioning and removal without creating a bottleneck.

• Cleaning and Hygiene Challenges: Splitting saws operate in direct contact with bone and tissue and must be cleaned and sanitized between carcasses or at defined intervals according to the facility hygiene plan. Equipment with complex surfaces, inaccessible blade housings, or inadequate wash-down capability extends cleaning time, reduces production uptime, and creates hygiene risks that can be cited during food safety audits.

• Blade Wear and Downtime: Splitting saw blades experience rapid wear when cutting through dense bone structure, requiring frequent sharpening or replacement. Poor blade selection, incorrect blade tension, or inadequate maintenance increases blade consumption, extends downtime, and degrades cut quality over the life of the blade.

Industry Hygiene & Production Compliance Standards

The splitting operation is governed by food safety frameworks that set expectations for equipment hygiene, contamination control, and operator safety in the slaughter environment. The following standards provide the compliance context for splitting saw specification and operation:

• HACCP (Hazard Analysis and Critical Control Points): Within the HACCP framework, the splitting operation falls under the hygiene control measures applied to carcass processing. Bone dust contamination, cross-contamination between carcasses, and incomplete cleaning of splitting equipment are hazards that must be controlled through the facility prerequisite program. The splitting saw design supports these controls through stainless steel construction, smooth sealed surfaces, accessible cleaning points, and sanitation-compatible blade housings. The equipment cleaning and sanitation schedule is documented as part of the HACCP prerequisite program, and facilities must verify that splitting equipment is cleaned to the validated standard at the defined frequency.

• GMP (Good Manufacturing Practice): GMP principles applied to carcass splitting equipment require food-grade stainless steel construction, hygienic design that prevents harborage of bacteria, effective drainage, and accessible cleaning surfaces. The splitting saw should be constructed to resist corrosion from cleaning chemicals and sanitizers, with blade guards and safety features that protect operators without compromising hygiene. The equipment should also be positioned in the line to allow adequate working space, carcass flow, and cleaning access.

• Operator Safety and Ergonomics Standards: Carcass splitting involves powered saw equipment with inherent mechanical hazards. Facility safety programs require guarding, emergency stop functionality, and operator training for splitting equipment. Ergonomically designed splitting stations reduce the physical strain on operators, supporting consistent cut quality throughout the shift while reducing the risk of fatigue-related incidents. Henger Technology splitting saw designs incorporate safety and ergonomic features in the equipment configuration.

Matching Henger Equipment Process Solutions

Henger Technology provides splitting saw and quartering equipment designed for cattle and large carcass processing, integrated into the carcass processing line for efficient, precise splitting operations. The equipment range supports both straight splitting and quartering configurations depending on product requirements.

Phase 1: Carcass Positioning at the Splitting Station

The splitting operation begins with carcass positioning. The Carcass Processing Hanging Conveyor delivers the carcass to the splitting station and holds it in the correct orientation for the split. The conveyor rail height and carcass spacing are configured to give the splitting saw operator clear access to the full length of the carcass, from the pelvic region through the spinal column. The controlled positioning reduces the physical effort required to guide the saw and improves split accuracy.

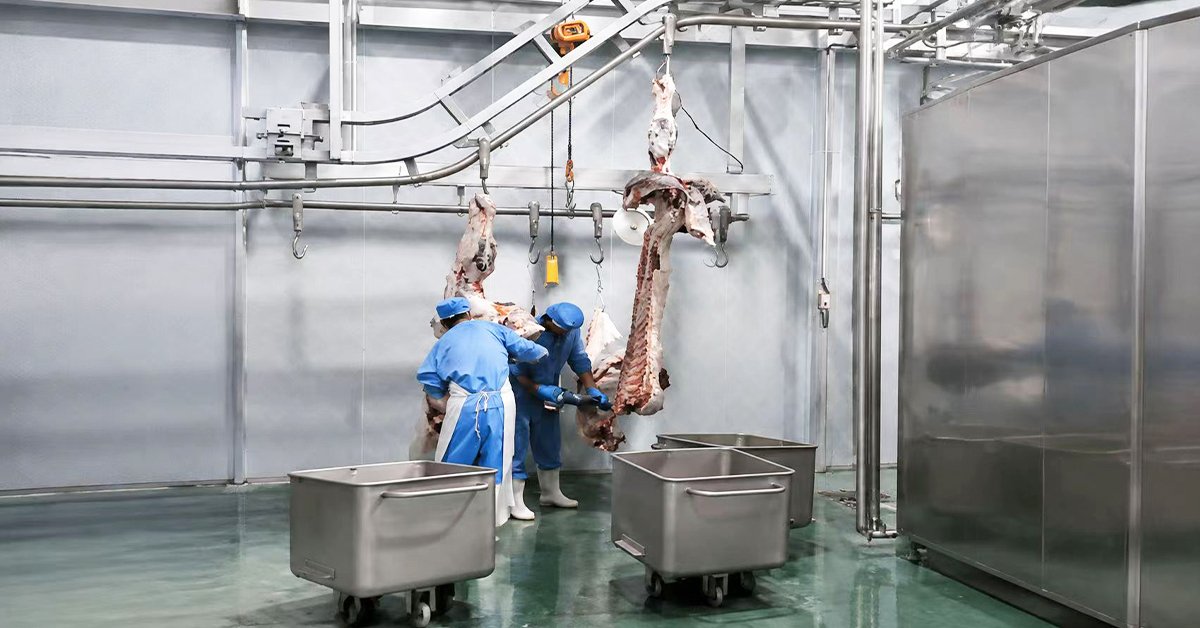

Phase 2: Precision Splitting with the Splitting Saw

The Splitting Saw performs the central division of the carcass along the spinal column. The saw is configured with the power and blade geometry required for cattle carcass splitting, delivering a straight, clean cut through bone and muscle with controlled bone dust generation. The blade speed and feed characteristics are selected for the carcass size range processed by the facility, ensuring each cut is completed within the line cycle time. The saw design incorporates dust extraction features that capture bone dust at the cutting zone, reducing contamination of the carcass and surrounding work area. The saw configuration supports precision meat cutting across the production run by maintaining consistent split geometry.

Phase 3: Quartering for Large Carcasses

For facilities that process large cattle carcasses or supply quartered product, the Quartering Saw divides the split half-carcass into forequarters and hindquarters. The quartering operation follows the splitting step, with the half-carcass positioned for the transverse cut. The equipment configuration supports both whole-carcass and quartered product lines, allowing the facility to match output to market requirements. The quartering step is integrated into the carcass processing flow to maintain line speed and minimize handling.

Phase 4: Hygiene and Sanitation of Splitting Equipment

After the splitting operation, the splitting saw is cleaned and sanitized according to the facility HACCP prerequisite program schedule. The saw design supports effective cleaning through stainless steel construction, sealed bearing housings, and accessible blade guards that allow thorough wash-down. Between-carcass sanitation is supported by the equipment configuration, and the cleaning records are maintained as part of the facility hygiene documentation.

Phase 5: Integration with Downstream Processing

The split carcass moves from the splitting station to the downstream processing operations, including the Cutting Conveyor Line for portioning and the Carcass Chilling and Acid Cooling Equipment for temperature reduction. The consistent split produced by the splitting saw simplifies the work of downstream cutting operators, improves portion consistency, and supports accurate carcass processing yield calculation across the production line.

Overseas Factory Real Cases With Henger Machines

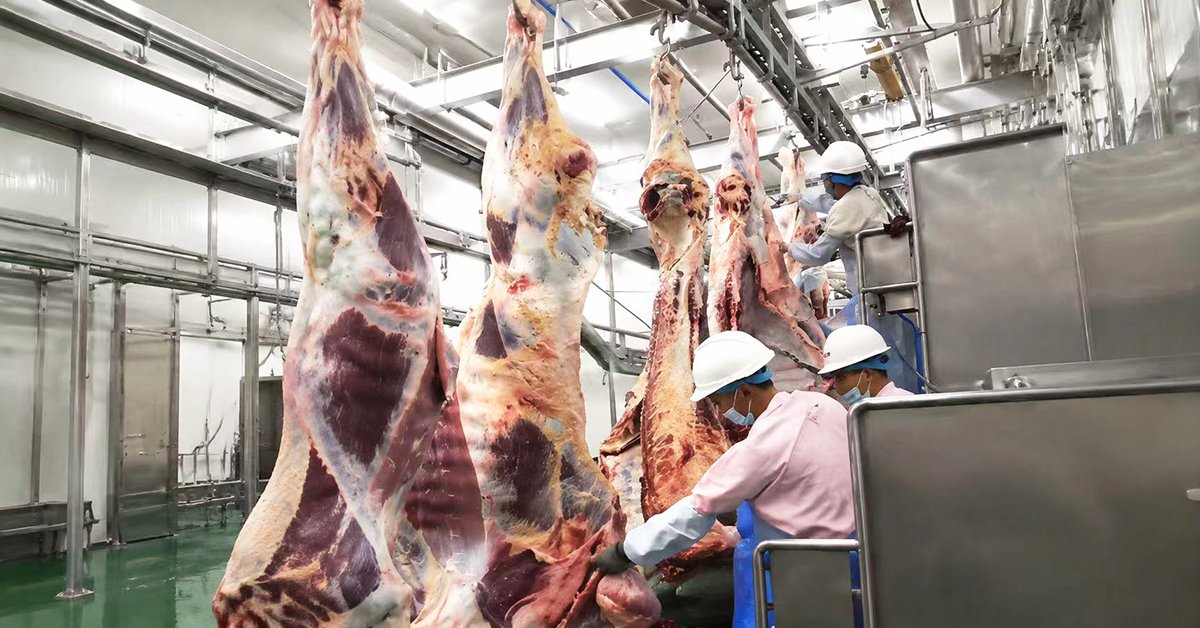

Case 1: South Africa — 300 Head/Day Cattle Halal Slaughter Project

The South Africa cattle processing facility, operating at 300 head per day for domestic halal markets and Middle East export, included the Splitting Saw as a core component of the carcass processing line. The saw was configured for the cattle carcass size range processed by the facility, delivering consistent splits that supported the downstream processing operations. The splitting station operated in coordination with the Carcass Processing Hanging Conveyor and the Carcass Chilling and Acid Cooling Equipment, with the split carcasses moving directly from the splitting station into the temperature control phase. The equipment configuration supported the facility processing capacity and the hygiene requirements of its compliance framework.

Case 2: Venezuela — 500 Head/Day Pig Slaughter Project

The Venezuela pig processing facility, upgraded to a commercial capacity of 500 head per day, implemented Henger Technology carcass processing equipment as part of its transition from small workshop operations to a commercial processing line. The splitting equipment configuration supported the increased throughput and provided consistent splitting outcomes that improved the efficiency of downstream processing. The project demonstrated how splitting equipment selection must be matched to the carcass size range and throughput of the target operation, with the equipment configuration adjusted during commissioning to the facility requirements.

Equipment Selection Guide

The following table outlines the key considerations for splitting saw selection in cattle and large carcass processing operations. The selection should be based on carcass size range, daily throughput, product output requirements, and facility layout.

Daily Operation & Maintenance Tips

Daily:

• Inspect the Splitting Saw blade for visible wear, damage, and correct tension before the first cut of each shift. Replace or re-tension blades showing signs of damage.

• Verify the blade guard and safety interlock function, confirming that the saw cannot operate with guards removed or safety systems bypassed.

• Clean and sanitize the splitting saw after each processing batch or at the intervals defined in the facility HACCP prerequisite program, paying attention to blade housing and dust extraction paths.

• Check the dust extraction system operation, confirming that bone dust is captured at the cutting zone and the extraction path is clear.

Weekly:

• Inspect the blade for sharpness and replace it if cut quality shows signs of deterioration, such as ragged edges or increased effort required.

• Lubricate the saw drive mechanism and moving components according to the manufacturer maintenance schedule.

• Test the emergency stop function and verify that the splitting station safety controls operate correctly.

Monthly:

• Conduct a comprehensive cleaning of the splitting saw, including disassembly of the blade housing for deep cleaning of surfaces that are not accessible during routine wash-down.

• Inspect the blade drive system for bearing wear and alignment, scheduling component replacement where wear is identified.

• Review split quality outcomes across the month, identifying any patterns that indicate blade, saw, or operator issues requiring correction.

Quarterly:

• Arrange a Henger Technology service visit for comprehensive inspection of the splitting saw, including blade drive components, safety systems, and electrical controls.

• Replace wear components including blades, drive belts, and seals using genuine Henger Technology spare parts.

• Review operator training and refresh procedures for splitting station operation, blade handling, and equipment cleaning.

Industry Frequently Asked Questions

Q1: What factors determine the correct splitting saw for a cattle processing line?

The primary factors determining the correct carcass splitter for a cattle processing line are carcass size range, daily throughput, and the target split quality. Carcass size determines the power and blade geometry required, with larger carcasses requiring more powerful saws to complete cuts within the line cycle time. Throughput determines whether the splitting station can keep pace with the slaughter line, and split quality affects carcass processing yield and downstream processing efficiency. The facility should also consider hygiene design, operator ergonomics, and compatibility with the existing carcass processing line. Henger Technology engineers evaluate these factors during the equipment specification process.

Q2: How does split quality affect carcass processing yield?

A precise, straight split along the spinal column center line produces two balanced half-carcasses that are easier to process in downstream cutting operations. An inaccurate split produces uneven halves, creating trim loss where the cut deviates from the optimal line and complicating portioning. Split quality also affects bone dust generation: cleaner cuts generate less bone dust, reducing trim requirements and contamination exposure. Consistent split quality across the production run supports accurate yield calculation and predictable output from the cutting operations.

Q3: How is bone dust contamination controlled during splitting?

Bone dust control combines equipment design and operational practice. The splitting saw incorporates dust extraction that captures bone dust at the cutting zone, preventing deposition on carcass surfaces and surrounding equipment. The blade geometry and feed characteristics are selected to minimize dust generation during the cut. Operational controls include positioning the splitting station to allow dust capture, cleaning the station at the intervals defined in the facility HACCP prerequisite program, and maintaining the dust extraction system. These combined measures reduce contamination exposure at the splitting step.

Q4: What maintenance does a splitting saw require?

The splitting saw requires daily blade inspection, cleaning, and sanitation; weekly lubrication and blade sharpness checks; and monthly deep cleaning and drive system inspection. Blades wear rapidly when cutting through dense bone and require sharpening or replacement based on cut quality. The blade drive system, including bearings and belts, should be inspected for wear according to the maintenance schedule. Genuine Henger Technology spare parts should be used for replacements to maintain equipment performance and safety standards.

Q5: Can the splitting saw be integrated into an existing carcass processing line?

Yes. The Splitting Saw is configured for integration with the Carcass Processing Hanging Conveyor and existing carcass processing lines. The installation includes positioning the splitting station at the correct point in the line flow, configuring the conveyor rail height and carcass spacing for splitting access, and integrating the saw controls with the line control system. Henger Technology engineers assess the existing line configuration during the site survey and provide the integration plan for the splitting station.

Q6: What after-sales support does Henger Technology provide?

Henger Technology provides a 12-month warranty on the Splitting Saw and related carcass processing equipment, with commonly used spare parts including blades, drive belts, and seals maintained in stock for rapid shipment. Technical support is available 7x24 hours through online remote assistance, and overseas engineers are available for on-site installation, commissioning, and operator training. Remote diagnostic services support troubleshooting for equipment performance issues, minimizing downtime and maintaining consistent splitting output.

Ending Consultation + Related Blog Links

The splitting saw is a decisive element of cattle carcass processing, determining split accuracy, carcass processing yield, and the efficiency of downstream cutting operations. A correctly specified splitting saw — matched to carcass size, throughput, and hygiene requirements — produces consistent, precise cuts that support yield optimization and reduce contamination risk. Henger Technology provides splitting saw and quartering equipment integrated with the Carcass Processing Hanging Conveyor and the complete carcass processing line, supported by equipment specification engineering and commissioning services.

Henger Technology was established in 2018 and holds over 60 equipment patents. The company maintains collaborative research partnerships with Tianjin University of Commerce and Binzhou University, and the engineering team brings over 15 years of industry experience to every project. Henger Technology welcomes visitors to explore its carcass processing equipment and complete slaughter line solutions at the Seoul Food and Hotel 2026 exhibition.

Contact Henger Technology today to discuss your carcass splitting requirements. Visit hengerglobal.com to explore the complete range of slaughter, hygiene, and cold chain equipment, and request a splitting saw specification consultation for your cattle processing line.
