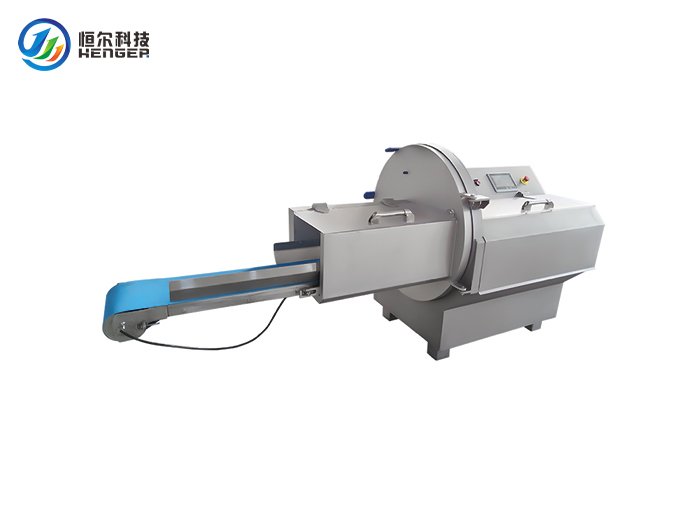

HE-25 Automatic Meat Slicer / Portion Cutter — Henger Global

PLC-Controlled Precision Slicing · 210 RPM Circular Blade · 1–30mm Adjustable · Step / Continuous / Portion Modes

Product Introduction

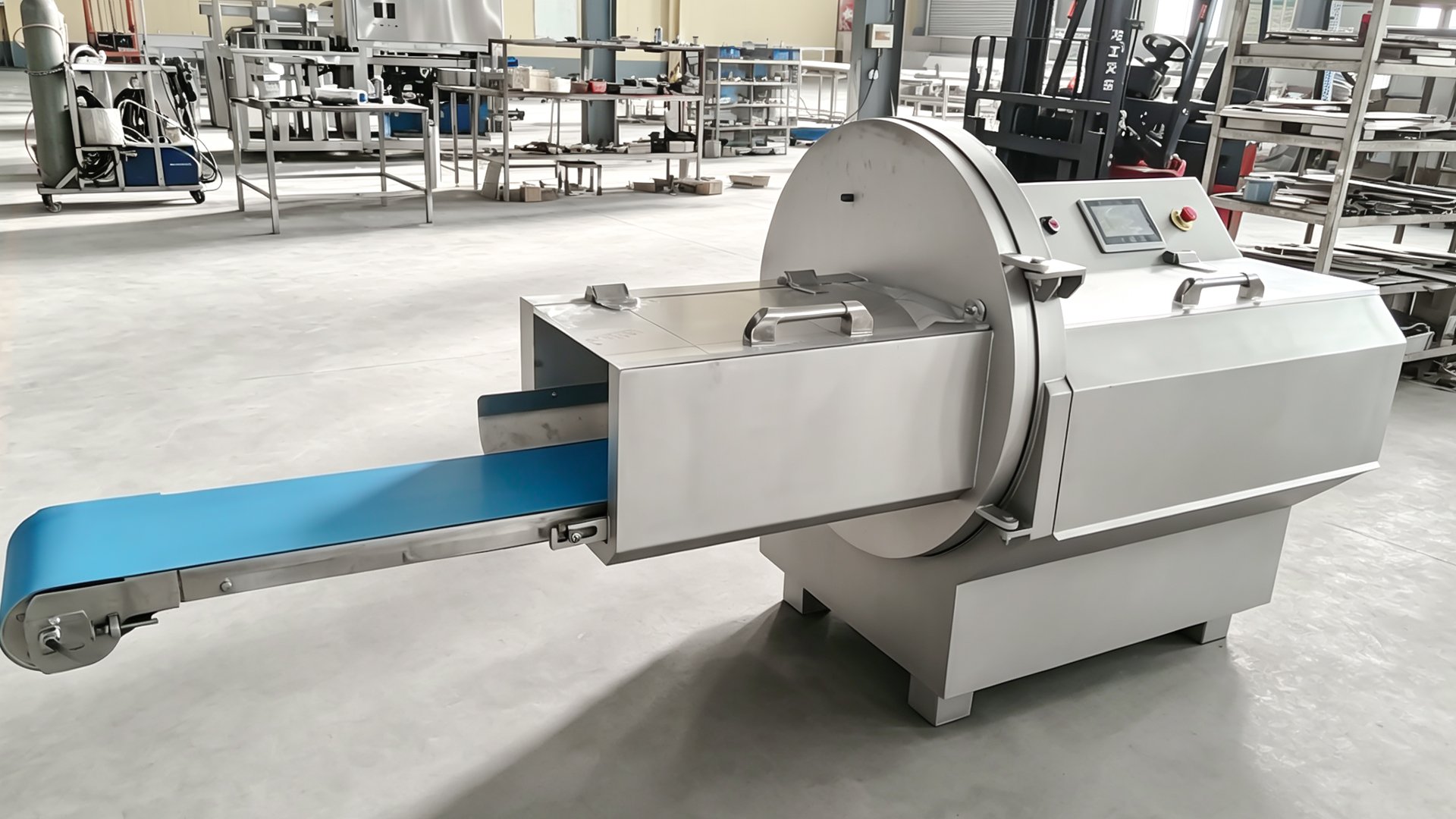

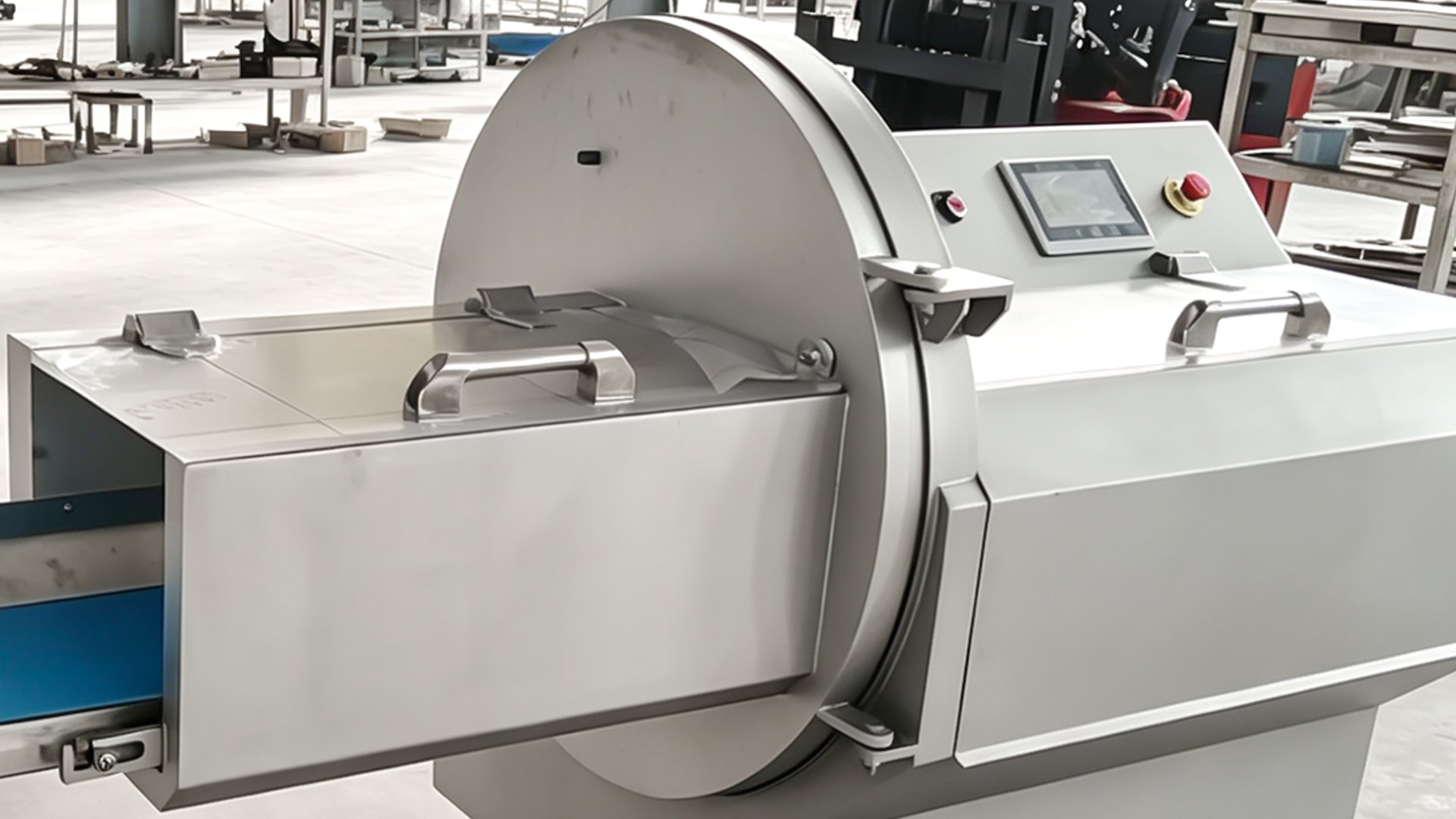

The Henger Global HE-25 Automatic Meat Slicer / Portion Cutter is a commercial-grade portioning system engineered for meat processing plants, central kitchens, prepared-food factories, and fresh-meat distribution centers. Powered by a 4 kW main motor with a 210 RPM circular cutting blade and controlled through an intuitive PLC touchscreen HMI, it delivers consistent, hygienic slicing across a full 1.0–30.0 mm thickness range (adjustable in 0.1 mm increments) for tempered meat, chilled meat, bacon, ham, cheese, fish, and more.

Three switchable feed modes (Step / Continuous / Portion) let one machine adapt to both precision small-batch cutting and high-throughput continuous production. An integrated 1290 × 290 mm outfeed conveyor with 1.3–16 m/min variable speed synchronises the HE-25 with downstream packaging equipment. Every wetted part is built from food-grade SUS304 stainless steel, and three interlocked safety guards provide operator protection to CE-level standards.

Core Advantages

Precision Slice Thickness Control: Slice thickness adjustable from 1.0 mm up to 30.0 mm in 0.1 mm increments via the PLC touchscreen. On-the-fly ±0.5 mm quick-adjust buttons let operators fine-tune slice thickness during production without stopping the machine.

Three Selectable Feed Modes: STEP mode delivers intermittent, precise feeding for small-format products; CONTINUOUS mode provides smooth high-speed pushing for large blocks and high-throughput lines; PORTION mode allows programmable 1-99 slices per portion with 1-10 s gripper pause, so portions land neatly grouped on the outfeed belt.

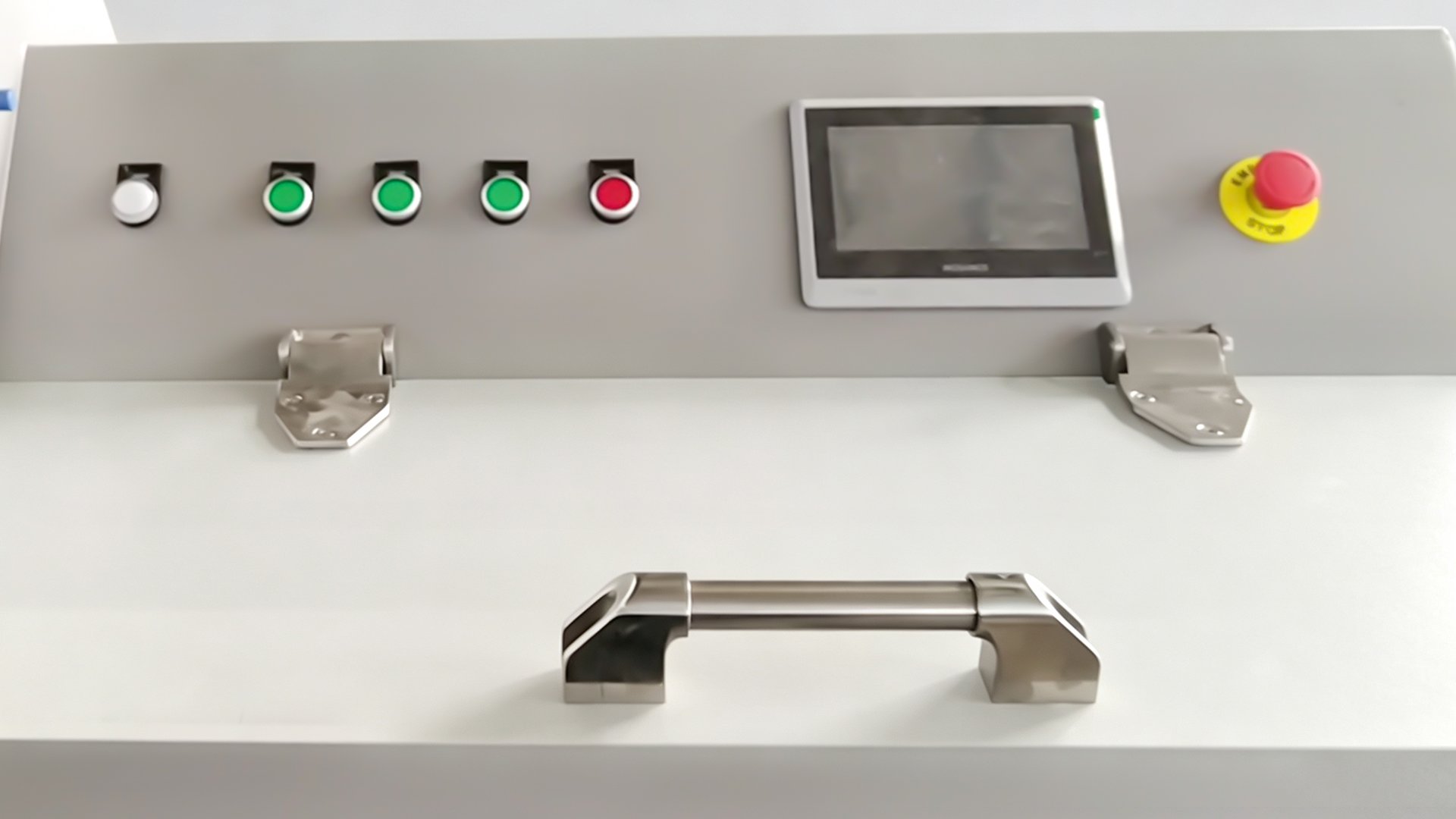

Smart PLC Touchscreen HMI: Multi-language touchscreen interface with gripper position memory (auto-return to setpoint after each cut cycle), real-time production counter with target quantity, variable outfeed belt speed 1.3-16 m/min, plus a device status monitor and alarm log for fast maintenance diagnosis.

Full SUS304 Stainless Steel Construction: Every wetted part is built from food-grade SUS304 stainless steel — corrosion-resistant, easy to clean, and fully compliant with food-processing hygiene standards. Oversized 680 × 250 × 190 mm infeed chute, adjustable levelling feet, and a waterproof emergency stop button are included as standard.

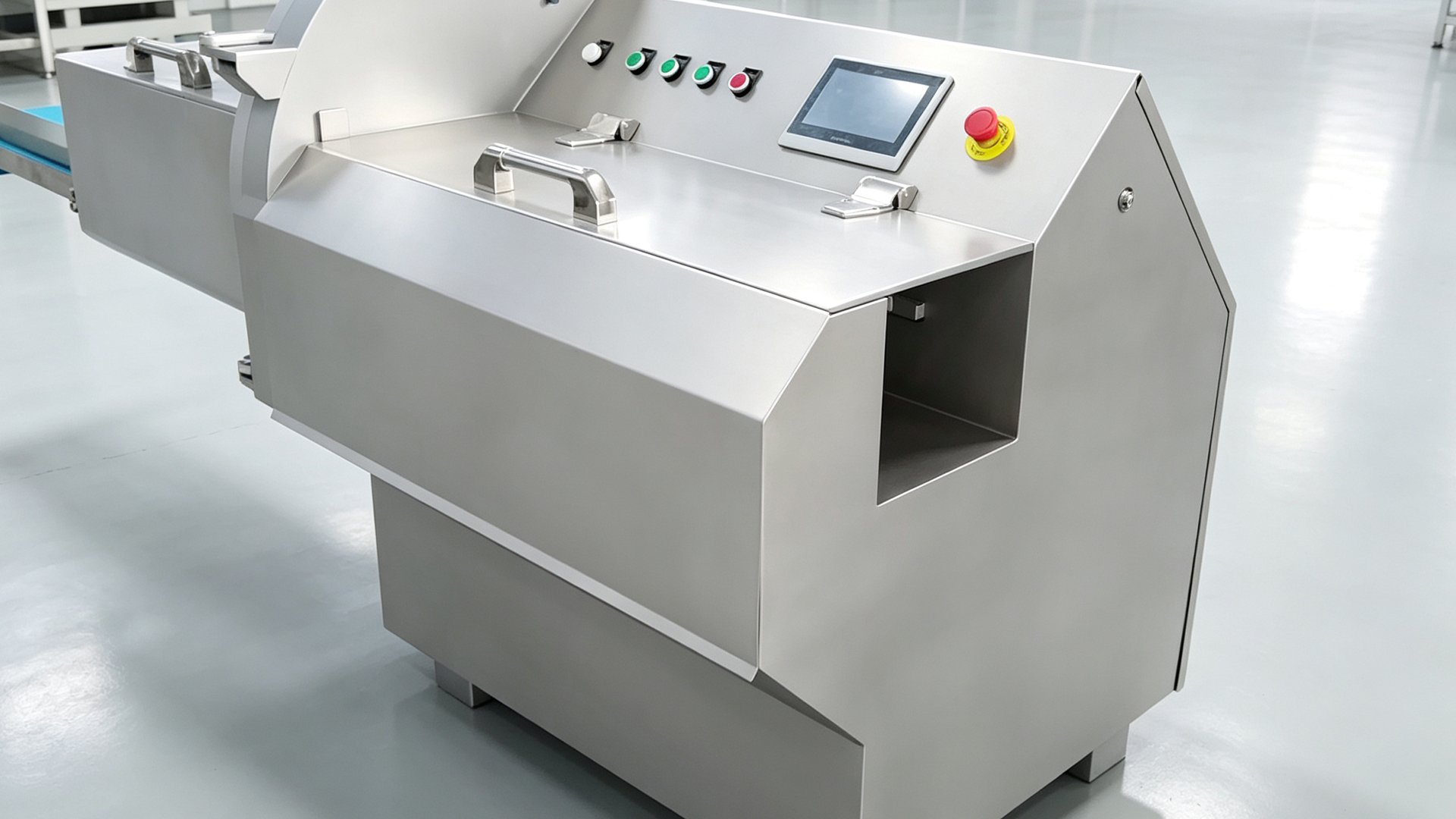

Three-Layer Interlocked Safety Guards: Infeed cover, cutting-chamber cover, and outfeed cover each carry a safety sensor; opening any guard stops the machine instantly. A green status indicator flashes when a guard is unlocked, and a daily start-up self-check routine verifies all three safety interlocks before production begins.

Wash-Down Friendly Hygienic Design: Blade, gripper, infeed chute, and outfeed conveyor components are tool-free removable for deep cleaning between shifts. Housing tolerates low-pressure wash-down (≤30 bar / ≤60 °C water, away from seals and control panel). Clearly labelled lubrication points speed up routine maintenance.

High-Capacity Outfeed Conveyor: Integrated 1290 × 290 mm outfeed belt with 1.3-16 m/min variable speed synchronises the HE-25 with downstream packaging, tray-forming, or interleaver equipment — keeping the whole slicing line continuous.

Tempered / Semi-Frozen Meat Capable: Designed to slice at -4 °C and above, the HE-25 handles tempered and partially frozen meat directly — no need to fully thaw product before slicing, which preserves juice, texture, and yield.

Technical Specifications

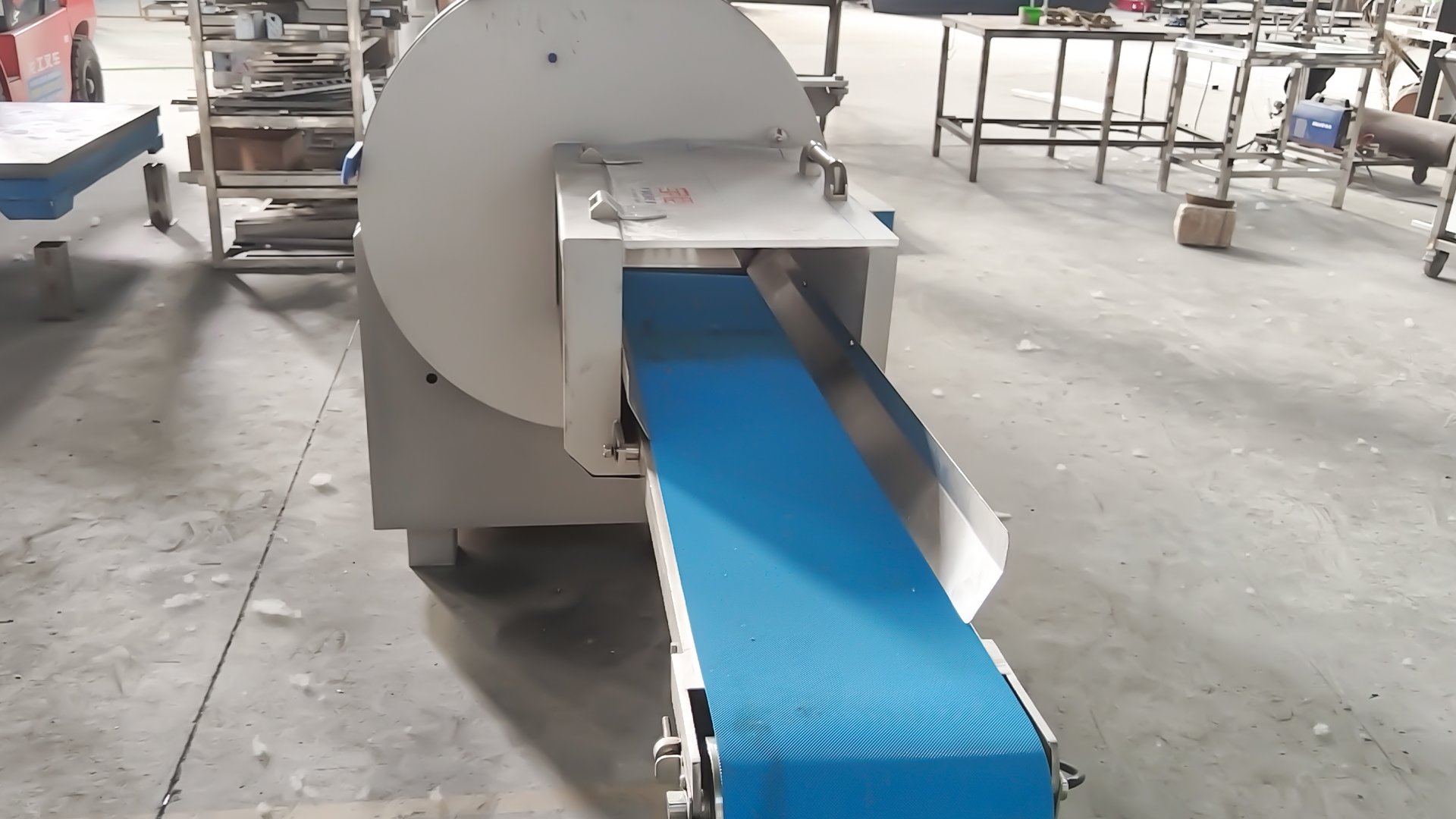

Equipment Detail Display

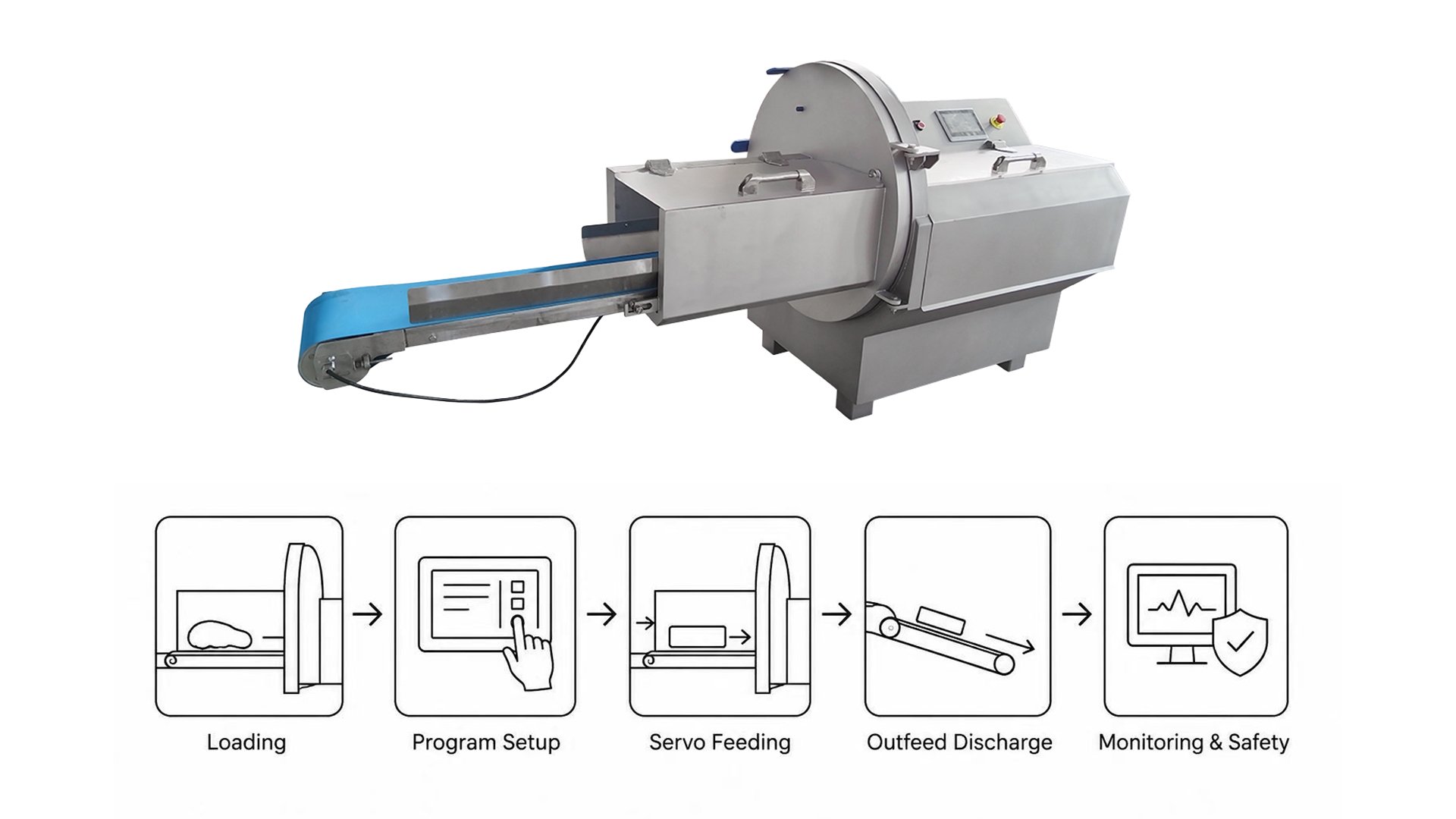

Working Principle

The HE-25 operates through a five-stage automated slicing cycle controlled by the PLC touchscreen. The machine consists of the SUS304 frame, servo-driven gripper, 210 RPM circular blade, PLC control system, and outfeed conveyor:

Loading: Tempered or chilled meat (at -4 °C or above) is placed into the 680 × 250 × 190 mm infeed chute, and the infeed safety guard is closed.

Program Setup: The operator sets slice thickness (1.0–30.0 mm) and selects the feed mode (STEP / CONTINUOUS / PORTION) on the PLC touchscreen. For portion mode, slices-per-portion (1-99) and pause interval (1-10 s) are also defined.

Servo-Driven Feeding: When production starts, the servo-driven gripper advances the meat block by the programmed pitch each cycle while the 210 RPM circular blade slices at the set thickness.

Outfeed Discharge: Sliced portions drop onto the 1290 × 290 mm outfeed conveyor running at 1.3-16 m/min, arranged either as a continuous ribbon or as neatly grouped portions ready for packaging or interleaving.

Monitoring & Safety: The PLC counts production in real time, remembers gripper position for the next batch, and instantly stops the machine if any of the three safety guards is opened.

Application Scenarios & Industry Cases

The HE-25 is applicable across meat processing and food manufacturing operations that require standardized portion slicing:

Meat Processing Plants & Cooked-Meat Factories: Portions primary cuts, cured meat, and cooked meat blocks into uniform slices for retail, foodservice, or further downstream processing.

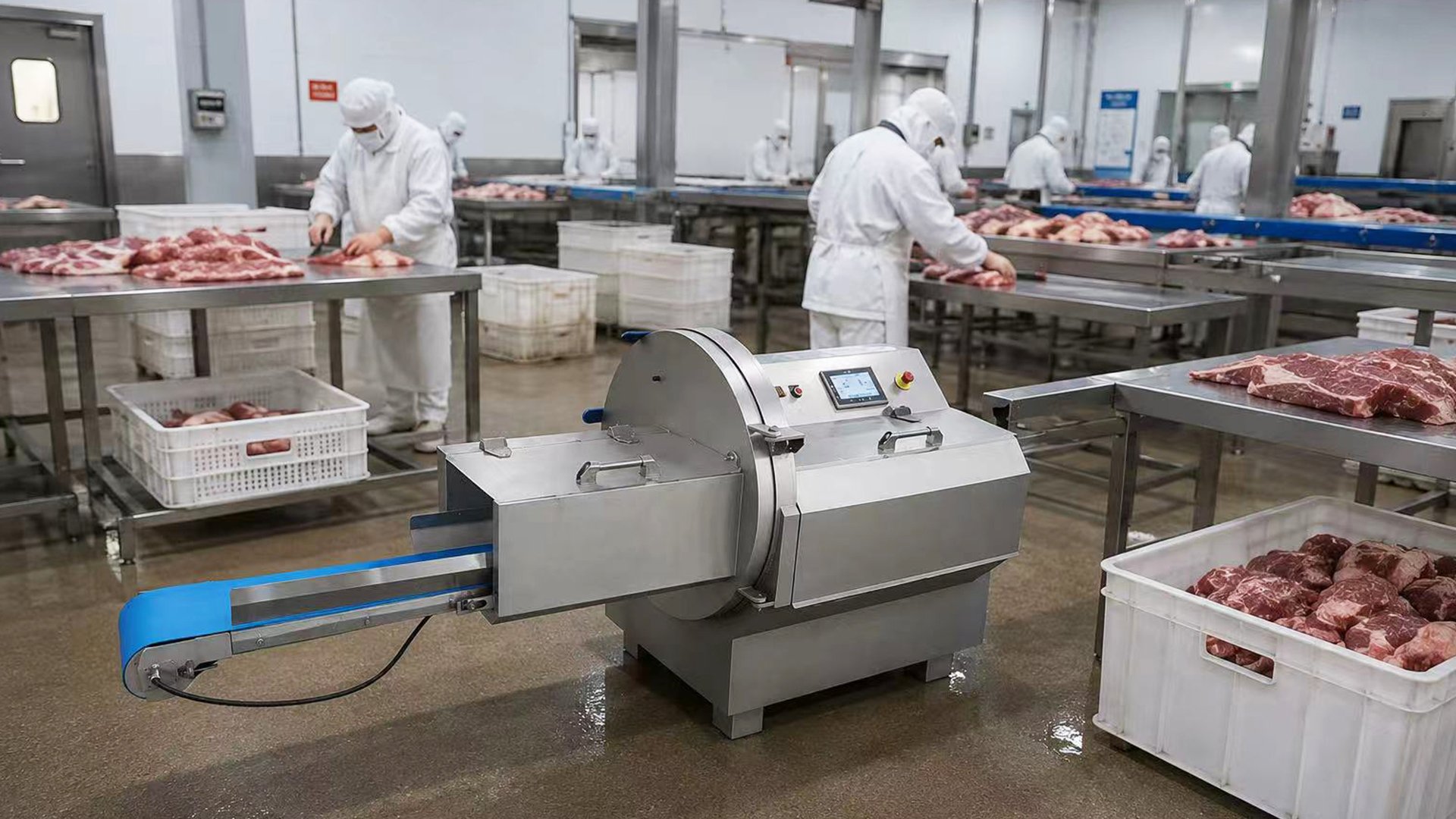

Bacon & Ham Slicing Lines: Slices cured pork bellies and cooked ham blocks into consistent thickness slices for vacuum-packed retail packs or foodservice trays.

Central Kitchens & Ready-Meal Producers: Delivers repeatable portion counts and slice thicknesses for centralized meal preparation, ready-meal assembly, and chain-restaurant distribution.

Fresh-Meat Distribution Centers & Wholesalers: Converts primal cuts into slice-ready portions on demand — reducing back-of-house labor at retail and foodservice customers.

Hot-Pot / BBQ Meat Roll Producers: Slices tempered beef and mutton blocks into uniform thin slices (rolls) for hot-pot and Korean-BBQ retail packs.

Cheese, Fish & Frozen Protein Slicing: The -4 °C+ operating range and adjustable thickness make the HE-25 equally suited to cheese blocks and block-frozen fish fillets. Actual slicing result subject to trial cut.

Qualification & Factory Strength

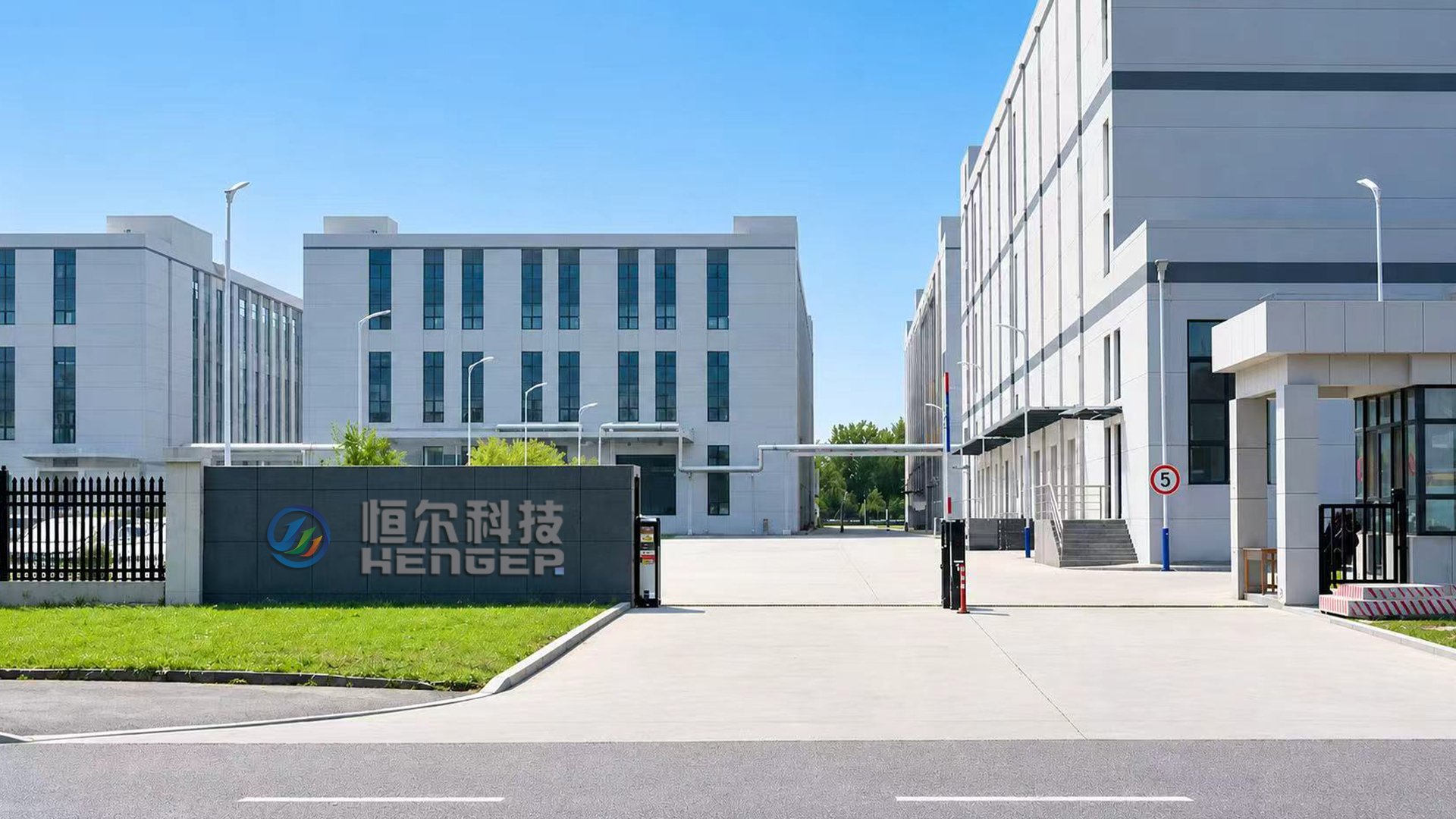

Henger Manufacturing (Shandong) Machinery Technology Co., Ltd. (Henger Global) is a specialized slaughter and meat processing equipment manufacturer founded in 2018 with over 100 invention patents. Our engineering team averages 15+ years of industry experience, focusing on technological innovation and product optimization for meat processing facilities worldwide.

Our production facility applies precision stainless steel fabrication under CE and ISO 9001 certified processes. Every machine undergoes factory testing and blade calibration before shipment. We offer turnkey project support including layout design, equipment manufacturing, installation, commissioning, and operator training. Equipment has been delivered to 100+ countries worldwide.

Frequently Asked Questions (FAQ)

Q: What products can the HE-25 slice?

A: Fresh meat, chilled meat, tempered / partially frozen meat (-4 °C and above), bacon, cooked ham, cheese blocks, block-frozen fish, restructured meat blocks, and similar products. For unusual products, please send us a sample for a trial cut.

Q: How precise is the slice-thickness control?

A: Thickness is set on the PLC touchscreen from 1.0 to 30.0 mm in 0.1 mm increments. During production the operator can nudge thickness ±0.5 mm using quick-adjust buttons without stopping the machine.

Q: What is the difference between step, continuous, and portion mode?

A: STEP mode advances the meat block one increment per blade cycle — best for small products and high precision. CONTINUOUS mode pushes the block smoothly at high speed — best for large blocks and high throughput. PORTION mode groups slices into user-defined portions (1-99 slices) with a programmable 1-10 s pause between portions — best for pre-packaging.

Q: What safety features are included?

A: Three interlocked safety guards (infeed / cutting chamber / outfeed), each with a position sensor that stops the machine instantly if opened; a green status indicator light; a waterproof emergency stop button; and a daily start-up safety self-check routine.

Q: What power supply and footprint are required?

A: 380 V / 50 Hz / 3-phase power, roughly 5 kW total power draw. Machine footprint is 2280 × 980 × 1400 mm; leave approximately 800 mm clearance on each side for operator access and cleaning. Adjustable levelling feet allow installation on standard concrete floors.

Q: How is the machine cleaned?

A: Blade, gripper, infeed chute liners, and outfeed conveyor modules are tool-free removable for deep cleaning between shifts or product changeovers. The housing tolerates low-pressure wash-down (≤30 bar / ≤60 °C water), keeping water away from seals and the control panel.

Q: Can the machine be customised?

A: Yes. Blade specification, portion program presets, conveyor length, control-panel language, and voltage (e.g. 220 V / 415 V / 480 V, 50 or 60 Hz) can be customised to match your production line requirements.

Q: What is the warranty and after-sales support?

A: 12-month warranty on the whole machine (wear parts excluded). We provide remote video technical support, on-site commissioning and operator training (available for export projects), and long-term supply of original spare parts.

Contact Henger Global for Your Custom Solution

For a detailed technical proposal, factory-direct quotation, or trial-cut evaluation with your specific meat product, please contact our engineering team. We offer free consultation on blade specifications, portion program setup, and integration with your existing slicing and packaging line.

Due to equipment updates, there may be parameter differences or component brand differences. Images and parameters are for reference only. Please contact sales for details.
