Product Introduction:

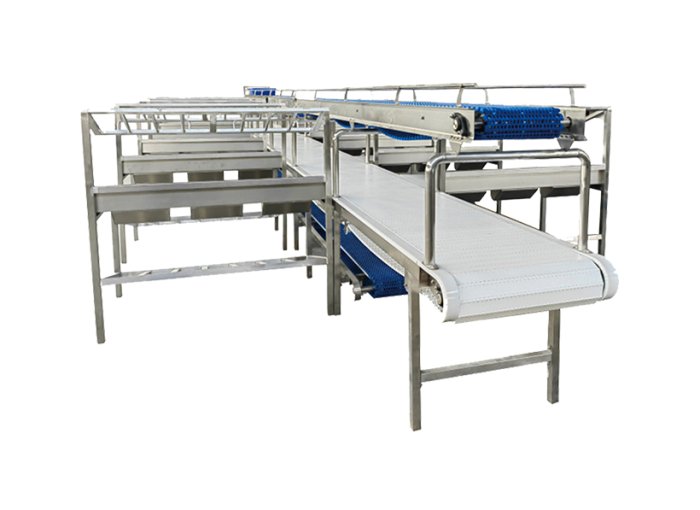

Cutting Conveyor Line — Multi-Station Continuous Beef Conveying

Flexible Conveyor System for Efficient Deboning and Trimming Operations

The Cutting Conveyor Line (also known as Deboning Line) from Henger Manufacturing transports beef quarters or halves to multiple cutting workstations for deboning, trimming, grading, and portioning operations. Designed for low-speed intermittent operation, it accommodates 4~12 cutting stations in a continuous flow.

(16) Reviews

PRODUCT DETAILS

Technical Specifications

Parameter

Value

Conveying Speed

2~8 m/min (adjustable)

Workstation Count

4~12 stations (configurable by capacity)

Line Length

10~30 meters

Drive Power

1.5~4.0 kW

Material

SUS304 full food-grade stainless steel

Control

PLC + touchscreen with variable frequency


Layer Options

· Single-layer — Basic configuration for smaller plants

· Double-layer — Increased throughput capacity

· Triple-layer — Maximum workstation density

Belt Material: Food-grade PVC non-toxic white nylon — odorless, easy to clean, compliant with food contact regulations.


Standards Compliance

· GB/T 17238-2008 Fresh and Frozen Boneless Beef

· GB/T 19478 Cattle Slaughtering Procedure


Environment Requirements

· Cold cutting room: 8~15℃ (optimal)

· Hot cutting room: ≤20℃ (must complete within 1.5~2h post-slaughter)

Contact us for conveyor line layout design matched to your production workflow.
