Sheep & Goat Slaughter Line Solutions: From Live Animal Handling to Export-Ready Lamb

The global lamb and mutton trade presents distinct challenges that set it apart from other livestock processing sectors. Sheep and goats are processed across an exceptionally wide range of contexts — from small-scale village abattoirs in Sub-Saharan Africa to large industrial plants in Australia, New Zealand, and the Middle East. In virtually every major export market, two demands consistently shape equipment selection: halal slaughter compliance and pelt quality preservation. A poorly designed sheep slaughter line can damage hide integrity during skinning, reduce meat quality through excessive carcass handling, and fail veterinary inspection requirements that determine market access.

Henger Technology provides complete sheep and goat slaughter line solutions engineered for medium to large-scale operations. From V-type live animal conveying through precision mechanical skinning to controlled lamb aging rooms, our integrated sheep slaughter equipment line is designed to protect carcass quality at every stage while meeting the operational demands of export-grade facilities.

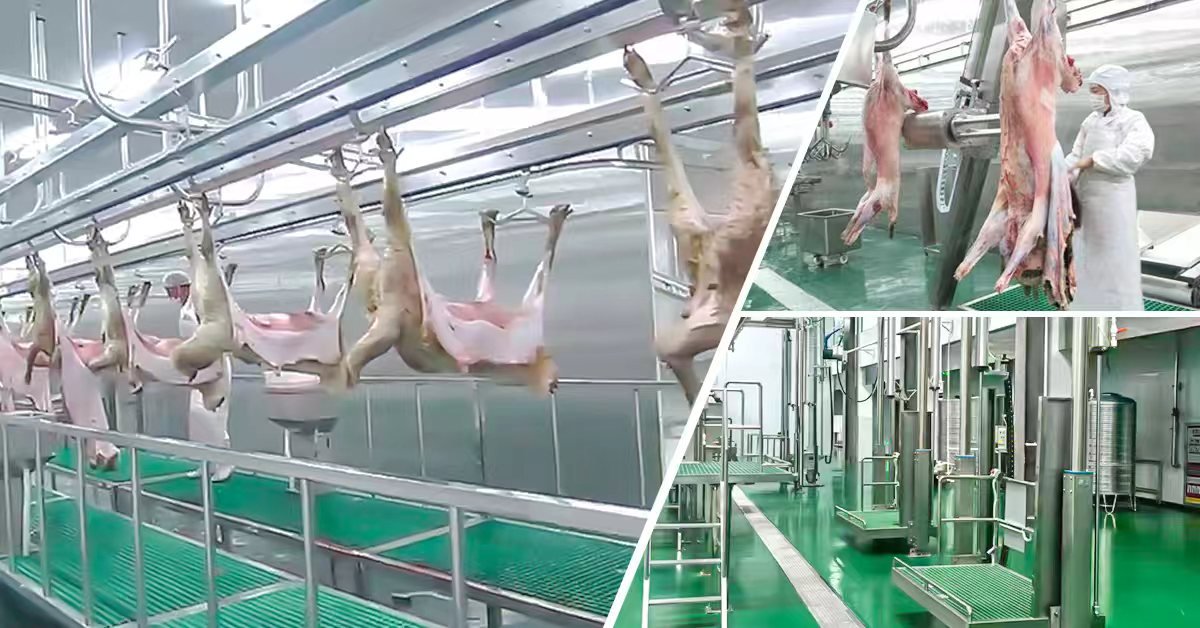

The Complete Sheep Slaughter Line Workflow

Sheep processing has a distinct workflow from cattle or pigs. The relatively small body size of sheep and goats makes them well-suited to hanging conveyor systems, while the commercial value of the pelt makes skinning quality a direct revenue consideration. Henger Technology's sheep and goat slaughter lines integrate the following core stages:

1. Live Animal Conveying: The V-type conveyor gently clamps each sheep's shoulder, chest, and hip in a stable V-slot structure, keeping limbs suspended while transporting the live animal to the stunning station. Belt spacing and speed are adjustable via variable frequency drive (5–30 m/min) to accommodate sheep and goats of varying sizes.

2. Stunning: Henger's handheld electric stunner provides reliable manual stunning for small-to-medium operations. Applied directly to the head, the 70–90V adjustable current induces unconsciousness in 1–3 seconds, preparing the animal for the bleeding stage.

3. Bleeding and Hanging Conveying: Immediately following stunning, sheep are transferred to the bleeding hanging conveyor. The enclosed anti-drip stainless steel chain prevents lubricant contamination of carcasses, while the airbag auto-tensioning mechanism maintains consistent chain tension throughout operation. Adjustable conveying speed (3–15 m/min) provides adequate bleeding time for complete blood drainage.

4. Balanced Pre-Skinning: Before mechanical skinning, operators perform standardized incisions at the abdomen and limbs using the balanced pre-skinning system. The mechanical assist reduces operator fatigue and maintains consistent incision depth and position — a preparatory step that reduces downstream skinning machine workload by over 70% and directly influences pelt integrity.

5. Mechanical Skinning: The lamb skinning machine — available in both rotary and drum configurations — pulls the hide from top to bottom using controlled, consistent force, achieving a clean skin removal success rate exceeding 98%. The rotary model integrates synchronously with the production line for continuous uninterrupted operation; the drum model uses coordinated air cylinders for stable pulling force.

6. Evisceration and Synchronous Inspection: Offal, head, and hooves travel alongside each carcass on the synchronous inspection line, enabling one-to-one veterinary inspection — a requirement for export facilities operating under government quarantine regulations.

7. Carcass Washing and Chilling: After inspection, carcasses pass through a washing machine for surface cleaning before entering the aging room.

8. Aging and Maturation: The lamb aging room maintains 0–4°C with 85–95% RH for standard aging (24–48 hours) or -2 to 2°C for rapid aging (12–24 hours), developing the tenderness and flavor profile expected in premium lamb export markets.

V-Type Live Animal Conveyor: Gentle Handling from the Start

In any sheep or goat slaughter line, how live animals are handled in the period immediately before stunning affects both animal welfare compliance and the quality of the final carcass. Stress-induced adrenaline release during this phase can affect meat color and pH, which in turn affects shelf life and consumer acceptance. Henger's V-type conveyor addresses this concern by design:

Secure, Low-Stress Support: The V-slot structure clamps the animal gently at the shoulder, chest, and hip — distributing support without applying concentrated pressure. Limbs hang freely, reducing struggle and stress during transport.

Flexible Capacity Matching: Belt spacing and speed are independently adjustable, enabling the same conveyor to handle animals ranging from small goats to large adult sheep across a single production line.

Food-Grade SUS304 Construction: The entire frame is constructed from food-grade 304 stainless steel with a single hanging point load capacity of 50–200 kg, meeting the hygiene standards required for meat processing facilities.

Seamless System Integration: The V-type conveyor is designed as the upstream input to Henger's stunning and bleeding conveyor systems, enabling smooth animal transfer without manual lifting at the transition point.

Precision Skinning: Protecting Both Carcass and Pelt Value

For sheep processors, the pelt is a significant secondary revenue stream. In markets where sheepskin is sold for leather or wool processing, a torn or contaminated hide can represent a meaningful financial loss per animal. Henger's two-stage skinning approach — balanced pre-skinning followed by mechanical skinning — is designed to address this directly.

The Balanced Pre-Skinning Step plays a role that is frequently underestimated. By creating standardized incisions at the abdomen and limbs before mechanical pulling, the pre-skinning device:

- Provides a consistent starting point for the mechanical skinning machine, reducing variation in pulling angle and force.

- Reduces the tension required during mechanical pulling by over 70%, lowering the risk of hide tearing and carcass surface damage.

- Can be adjusted for blade arm spacing and pre-skinning depth to accommodate different sheep body sizes within the same operation.

This core sheep slaughter machine completes the skinning process using controlled top-to-bottom pulling force. The rotary model achieves continuous throughput of 200–600 heads per hour synchronized with the main production line; the drum model provides precise pneumatic control suited to operations requiring closer supervision of individual skinning quality. Both models are constructed from food-grade stainless steel and deliver a clean skin removal success rate of above 98% under standard operating conditions.

Synchronous Inspection Line: Traceability for Export Compliance

Access to regulated export markets — particularly the EU, Gulf Cooperation Council countries, and parts of Africa — requires documented veterinary inspection of each carcass and its corresponding offal. The Henger Lamb Synchronous Inspection Line makes this requirement operationally feasible at production scale:

One-to-One Matching: An integrated hook-and-tray system ensures each carcass travels alongside its own offal, head, and hooves throughout the inspection process. Manual numbering, labeling, or optional electronic traceability systems provide documentary evidence for each animal.

Variable Speed Control: Stepless speed adjustment within 2–10 m/min via variable frequency drive ensures the inspection line remains synchronized with the main slaughter line regardless of production rate adjustments.

Real-Time Data Integration: Optional integration with inspection data recording systems enables real-time logging of inspection time, inspector ID, results, and any anomalies — providing the audit trail required by importing country veterinary authorities.

Broad Market Compliance: The system design meets quarantine inspection requirements applicable to multiple export destinations across the EU, Middle East, and African markets.

Lamb Aging Room: The Final Step to Premium Quality

In premium lamb export markets — particularly Australia, New Zealand, and the UK — controlled post-slaughter aging is expected as standard practice. Post-mortem muscle contraction (rigor mortis) must be fully resolved before the carcass is cut and packaged. Without adequate aging, cuts can be tough and dry, reducing consumer satisfaction and brand value. Henger's lamb aging room addresses this requirement with precision:

Standard Aging Mode: 0–4°C with 85–95% RH for 24–48 hours — the baseline program for most commercial lamb processing operations, delivering consistent tenderness improvement across the carcass.

Rapid Aging Mode: -2 to 2°C for 12–24 hours — an accelerated protocol for operations where throughput and cold-chain speed take priority.

Precise Climate Control: PU sandwich panel insulation with stainless steel inner liner, combined with an intelligent PLC controller and touch screen interface, maintains temperature and humidity within tight tolerances throughout each aging cycle.

Remote Monitoring: Optional 4G/WiFi remote monitoring module enables temperature and humidity tracking from off-site, providing continuous oversight without on-site staffing at all hours.

High-Altitude Capability: Special configurations for facilities above 3,000 m elevation with high compression ratio refrigeration compressors are available — relevant for processors in the Andes, East African highlands, and Qinghai-Tibet Plateau regions.

Why Henger Technology for Your Sheep and Goat Processing Facility

Designing a sheep or goat slaughter line requires expertise in an equipment category that occupies a distinct niche — smaller than cattle lines but more complex than poultry systems. Henger Technology brings an average of 15+ years of industry expertise to this challenge, with a product range built specifically for sheep and goat processing rather than adapted from cattle or pig equipment. Our sheep line offering provides:

Species-Specific Equipment: Every product in our sheep and goat line — from the V-type conveyor to the lamb skinning machine and aging room — is engineered for the body size, weight range, and biological characteristics of small ruminants.

Scalable Configurations: Our equipment configurations support capacities from approximately 50 to 600 heads per hour, enabling growth from small commercial operations to large-scale export facilities without requiring a complete equipment replacement.

Halal-Compatible Design: All equipment is designed to accommodate halal slaughter protocols, with flow layouts that support the positioning and operational requirements of Muslim slaughtermen.

SUS304 Stainless Steel Throughout: All sheep slaughter equipment is built from food-grade stainless steel for durability and hygienic cleanability in the demanding environment of a commercial abattoir.

Turnkey Project Delivery: From facility layout design and equipment manufacturing through installation, commissioning, and operator training, we deliver a complete operational system — not individual machines.

Build Your Sheep and Goat Processing Facility with Henger Technology

Whether you are building a new sheep slaughter line or upgrading an existing operation to meet export market standards, Henger Technology provides the sheep slaughter machine expertise and project delivery capability to get you there. Our engineering team works with you from the initial capacity assessment through to final commissioning, ensuring your production line is aligned with your target markets and operational requirements.

Visit us at www.hengerglobal.com to consult with our engineering team and receive a tailored equipment plan for your sheep and goat processing project.
