Pig Carcass Singeing & Polishing Equipment Guide

August 21, 2026

Pig Carcass Singeing and Polishing: Equipment Selection for a Clean Skin Finish After Dehairing

After dehairing, a pig carcass still carries fine residual hairs, surface bacteria, and skin irregularities that compromise both hygiene standards and market appearance. Two pieces of equipment close this gap: the hair singeing furnace and the polishing washing machine. Together, they form the final surface treatment stage before evisceration — delivering the clean, smooth, export-grade finish that buyers and food safety auditors demand. This guide covers equipment selection criteria, technical parameters, and line integration considerations for small- to industrial-scale pig slaughter operations.

Why Surface Treatment After Dehairing Matters

Even the best spiral dehairing machine achieves 95%+ hair removal — not 100%. The remaining fine hairs (particularly around the head, legs, and belly folds) are invisible to the casual eye but unacceptable under HACCP protocols and export inspection. Beyond hair, the dehairing process leaves behind:

• Skin abrasion residue and loosened epidermis

• Surface microbial contamination from scalding water contact

• An uneven, mottled skin appearance that reduces retail value

A properly configured singeing and polishing stage addresses all three issues in a continuous, automated pass — adding under 3 minutes to total processing time while significantly improving carcass value and compliance.

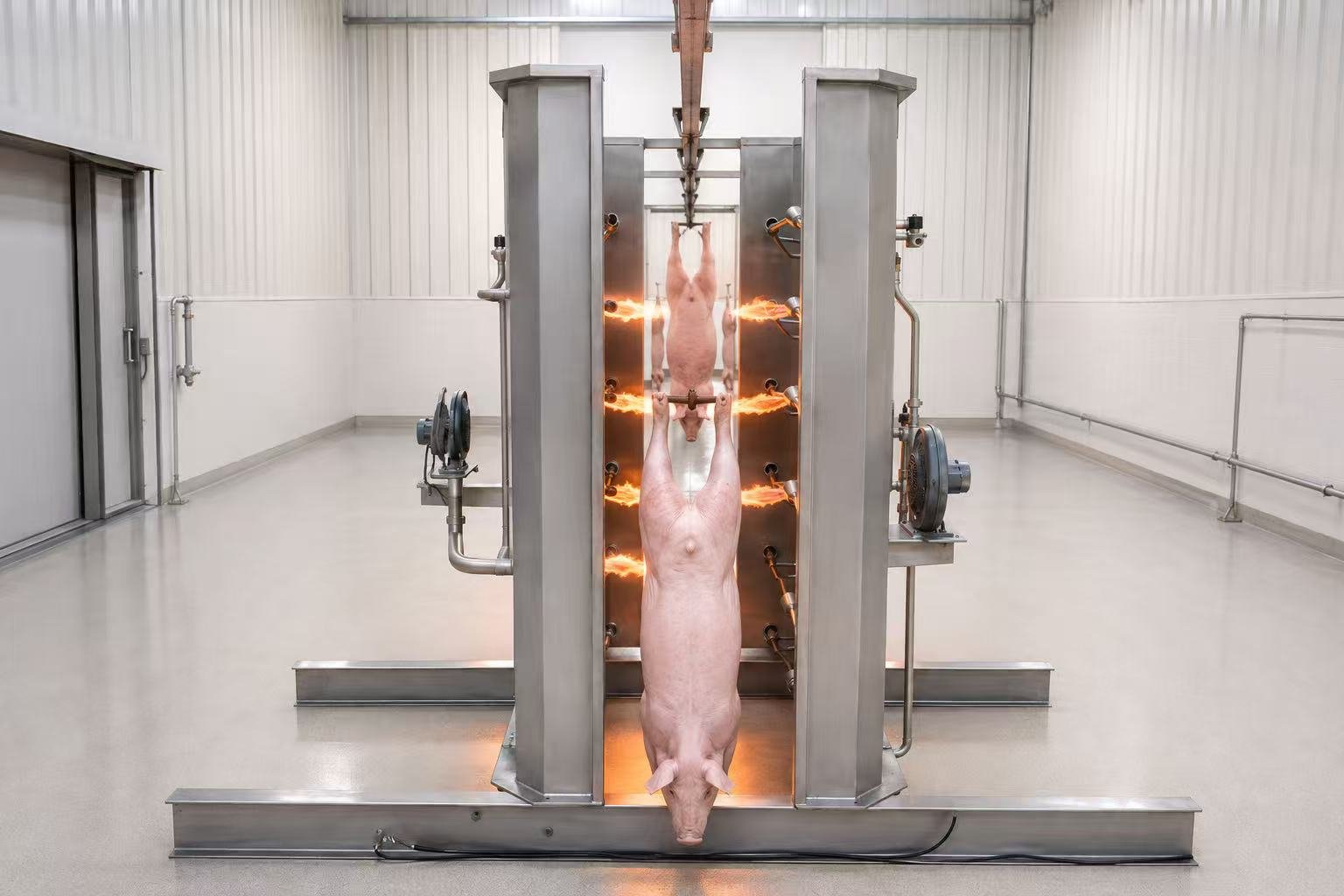

Hair Singeing Furnace — Selection Criteria and Parameters

The singeing furnace uses open natural gas or LPG flames to incinerate residual fine hairs across the carcass surface. The process takes 30–60 seconds per carcass and provides a secondary food safety benefit: surface pasteurization. Flame temperatures of 600–800°C reduce surface microbial load, compensating for any contamination introduced during scalding and dehairing.

Key selection parameters:

• Fuel type: Natural gas is preferred for continuous operations due to stable pressure and lower cost per BTU; LPG suits facilities without gas grid access

• Flame zone configuration: Multi-zone burners with independent intensity control allow adjustment for different carcass sizes (50–150 kg live weight range)

• Throughput: Match furnace capacity to line speed — Henger's models cover 100–1,000 heads/hr

• Safety systems: Gas leakage detection and auto-shutoff are non-negotiable — verify compliance with local pressure vessel and gas safety codes

• Material: SUS304 stainless steel body with firebrick lining for thermal insulation and corrosion resistance

A common sizing mistake: operators select furnace capacity based on peak throughput without accounting for conveyor dwell time. Insufficient dwell time leaves unsinged patches; excessive dwell chars the skin surface and requires additional washing.

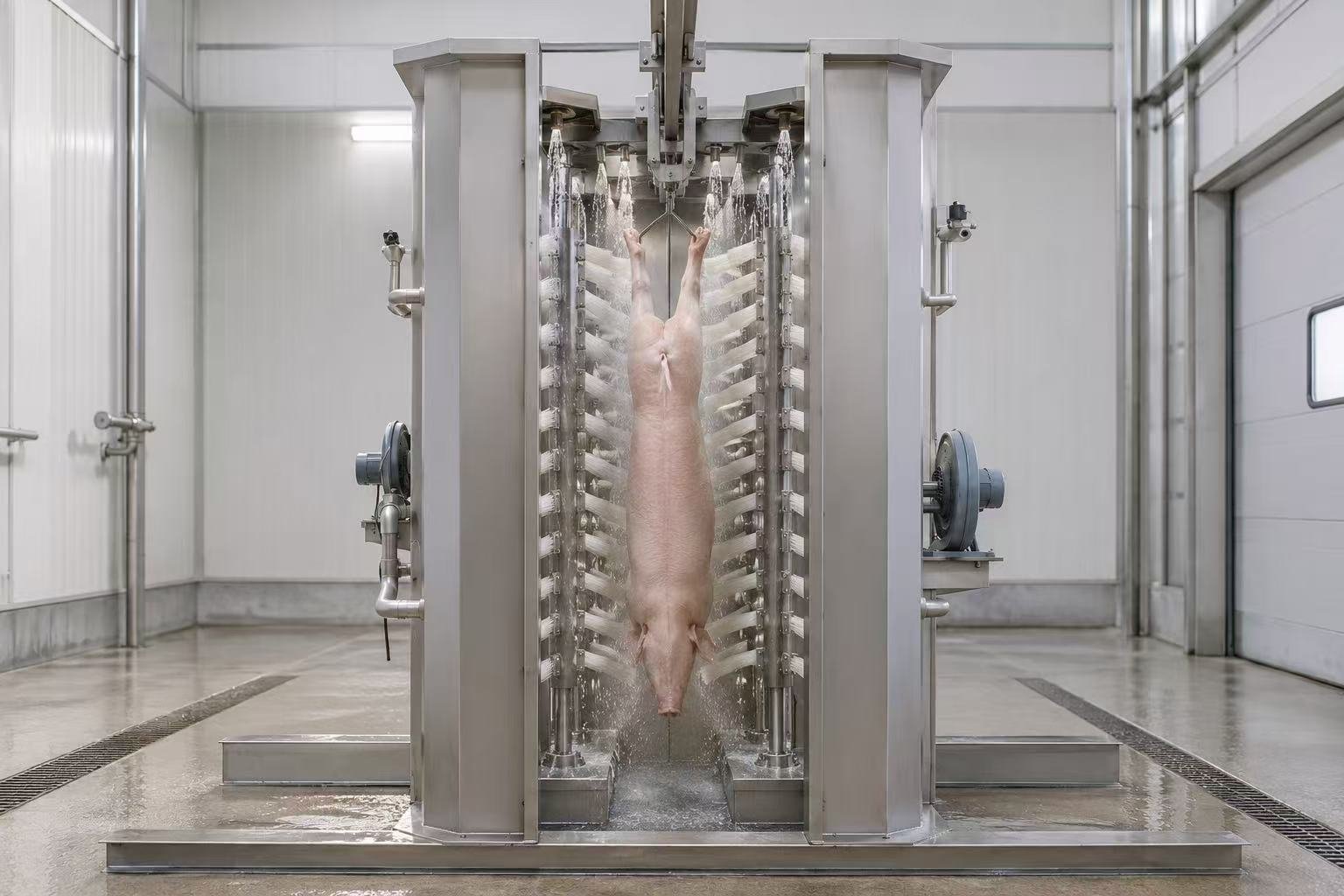

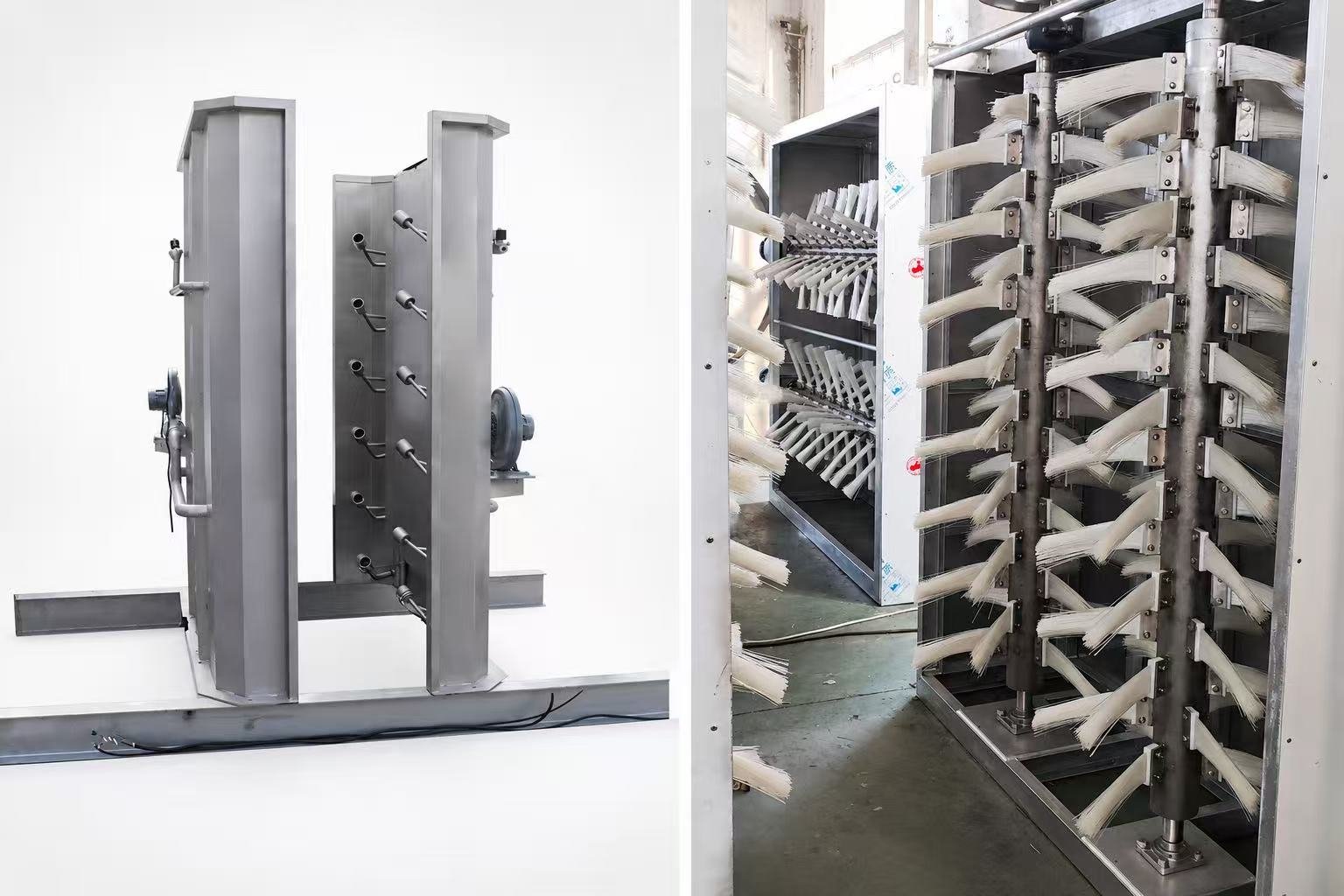

Polishing Washing Machine — Removing Soot and Achieving Market-Ready Finish

After singeing, the carcass surface is clean of fine hairs but covered in carbon soot and flame residue. The polishing washing machine removes this residue through a combination of high-pressure warm water spray and rotating food-grade brushes — delivering the white, smooth, visually appealing finish required by supermarket chains and export processors.

Technical parameters (Henger reference):

• Wash water temperature: 40–50°C (warm wash activates and loosens carbon residue)

• Brush material: food-grade rubber fingers or nylon bristles, replaceable without tools

• Spray system: multi-nozzle array covering dorsal, ventral, and lateral surfaces simultaneously

• Capacity: 100–1,000 heads/hr, synchronized with conveyor line speed

• Drainage: closed-loop dirty water collection system — prevents cross-contamination of floor drains

Line Integration — Sequencing and Floor Space Planning

The singeing and polishing stage sits between the dehairing section and the evisceration platform. Proper sequencing and spatial planning prevents bottlenecks:

Recommended sequence:

1. Spiral Dehairing Machine (≥95% hair removal)

2. Hair Singeing Furnace (fine hair removal + surface pasteurization)

3. Polishing Washing Machine (soot removal + surface polish)

4. Pneumatic Lifting Platform (carcass transfer to evisceration height)

Floor space guideline:

• Singeing furnace: 3–5 m length depending on throughput model

• Polishing machine: 2–3 m length

• Allow 1.5 m clearance on each side for maintenance access and SOP compliance

Both machines operate in-line on the existing overhead conveyor rail — no transfer lift required between them. Synchronize conveyor speed with furnace dwell time calculation before commissioning.

Hygiene and Compliance Considerations

For HACCP-certified and export-oriented facilities, the singeing stage serves a dual role:

• Critical Control Point (CCP) support: Surface flame treatment reduces Salmonella and E. coli counts on the carcass skin — documented in processing records as a pre-evisceration decontamination step

• Audit trail: Record furnace temperature and fuel consumption per shift for HACCP log compliance

• Water management: Polishing machine wastewater contains carbon particulates — install a settling tank or filtration unit before discharge to comply with local effluent regulations

For Halal-certified operations, verify that gas burner materials and lubricants are non-pork-derived and that the singeing process is scheduled to avoid cross-contamination between species lines.

FAQ

Do I need both a singeing furnace and a polishing machine, or can I use just one?

For export-grade operations and HACCP compliance, both are required. The furnace removes fine hairs and sterilizes the surface; the polishing machine removes the resulting soot. Running only the furnace leaves a carbon-contaminated carcass. Running only the polishing machine without prior singeing leaves residual fine hairs. They are designed to work as a pair.

What is the maintenance schedule for the singeing furnace burners?

Burner nozzles should be inspected weekly for carbon buildup and cleaned monthly. Gas supply filters require replacement every 3–6 months depending on gas quality. Full burner assembly inspection and firebrick lining check is recommended annually or after every 500,000 carcasses processed.

Singeing and polishing are not optional finishing steps — they are the difference between a carcass that passes food safety inspection and one that doesn't. Selecting equipment matched to your line speed, fuel availability, and output grade determines both processing efficiency and compliance status. Henger Global's singeing furnaces and polishing washing machines are engineered for continuous-line integration across all production scales. Contact our engineering team at info2@hengerchina.com or via WhatsApp at +86 188 5430 1050 to discuss your specific configuration requirements.
