Scalding and Dehairing Line Design for Pig Slaughter: Integrated Machine Selection and Temperature Control

For pork processors targeting export markets or HACCP certification, the scalding and dehairing stage is one of the most technically demanding sections of the entire slaughter line. A poorly controlled water temperature or an undersized dehairing drum results in incomplete hair removal, carcass skin damage, and downstream hygiene failures that are nearly impossible to correct later in the process. Yet many new plant investors underestimate what this stage requires in terms of equipment sizing, water management, and process control.

This guide breaks down the critical engineering decisions behind scalding tank design and dehairing machine selection—covering water temperature parameters, scalding duration, machine types, and how to match equipment capacity to your daily slaughter volume.

Why Scalding Temperature Is the Controlling Variable

In pig slaughter, scalding serves a single purpose: to loosen the hair follicles so that mechanical dehairing can remove bristles cleanly without tearing the skin. The critical variable is water temperature. Industry practice places the effective scalding range between 60°C and 65°C (140–149°F). Below this range, follicles do not open sufficiently and hair removal is incomplete. Above 65°C, the outer skin layer begins to cook, tightening the follicles and making the carcass surface prone to tearing and discoloration during dehairing.

Maintaining temperature consistency across the entire scalding tank—not just at the inlet—is therefore a core engineering requirement. Large-capacity tanks that rely on a single heat source frequently develop cold zones near the center or exit end of the tank, causing variable results across a single batch. A proper design includes distributed heat exchangers or recirculation loops to keep the water uniform within ±1°C throughout.

Scalding duration is equally important. For standard market-weight pigs (90–120 kg live weight), an effective scalding time falls between 4–6 minutes. Lighter carcasses or higher ambient temperatures may allow for the lower end; heavier or cold-climate operations typically require closer to 5 minutes. Integrated conveyor scalding tanks, where carcasses are transported continuously through the tank on a moving rail, allow precise control of both time and temperature by adjusting conveyor speed.

Scalding Tank Types: Batch vs. Continuous

Henger Manufacturing's pig scalding and dehairing systems are available in three main configurations, each matched to a different scale of operation and floor space constraint.

• Batch immersion scalding tanks are suited for operations processing fewer than 50 pigs per hour. The carcass is lowered into a stainless steel tank manually or via hoist, held at 60–65°C for 4–6 minutes, then lifted and transferred to a separate dehairing machine. These systems are straightforward to operate and cost-effective for low-volume facilities.

• Continuous conveyor scalding tanks paired with spiral dehairing machines are the standard for mid- to high-volume operations (50–500+ pigs per hour). Carcasses move through the scalding tank on an overhead rail at a controlled speed, ensuring consistent scalding time for every animal. A spiral dehairing machine (≥95% hair removal rate) follows immediately downstream.

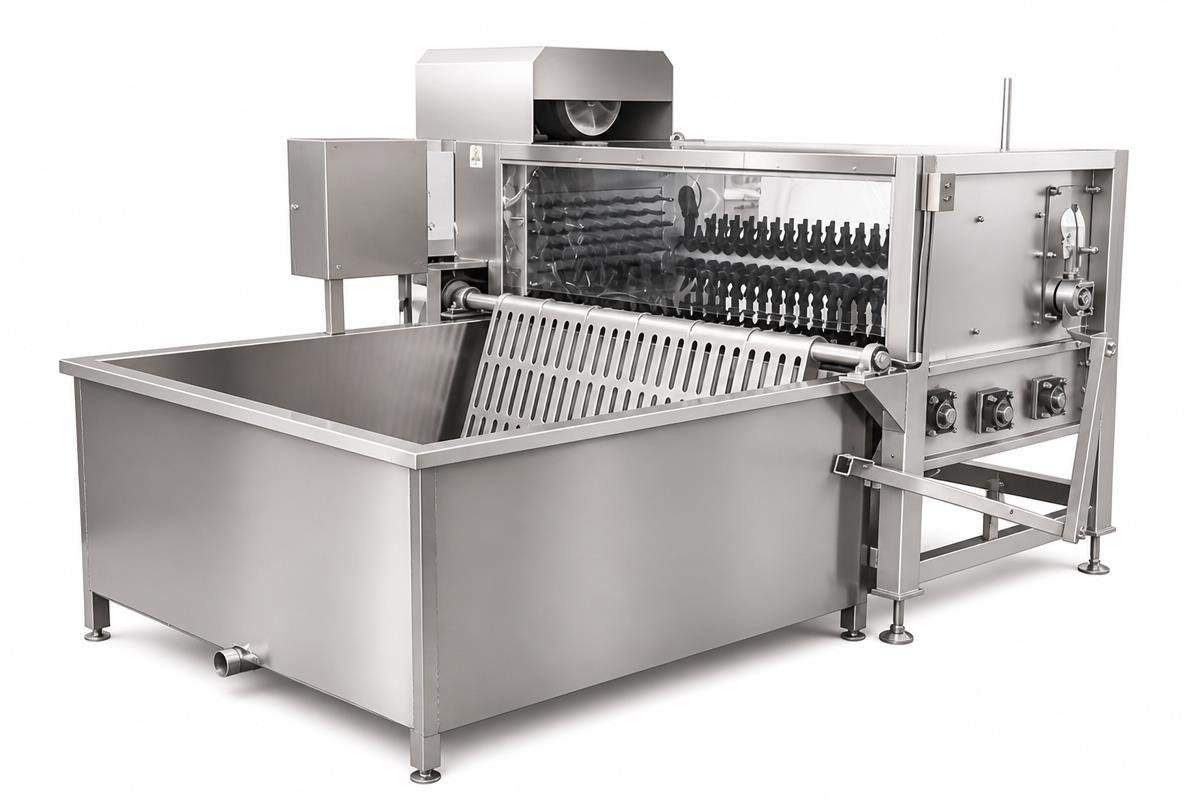

• Scalding and dehairing integrated machines combine a scalding pool and a spiral dehairing section in a single compact unit. After the carcass is scalded in the water tank (60–65°C, 4–6 min), it is automatically conveyed into the dehairing chamber where high-speed spiral rubber fingers remove ≥95% of bristles. This configuration reduces floor space and inter-station transfer time, and is particularly suited for small to medium-scale operations (50–300 pigs/hour) or facilities with limited workshop area.

For technical specifications of Henger's scalding and dehairing integrated machine, visit the pig slaughter line equipment page.

Dehairing Machine Selection: Drum Type and Capacity Matching

After scalding, carcasses move directly into the dehairing stage. In Henger's integrated machine, this transition is automatic — the scalded pig is conveyed from the water tank directly into the spiral dehairing chamber without manual handling. In separate-machine configurations, the transition must be completed within 30 seconds to prevent follicle closure as skin temperature drops.

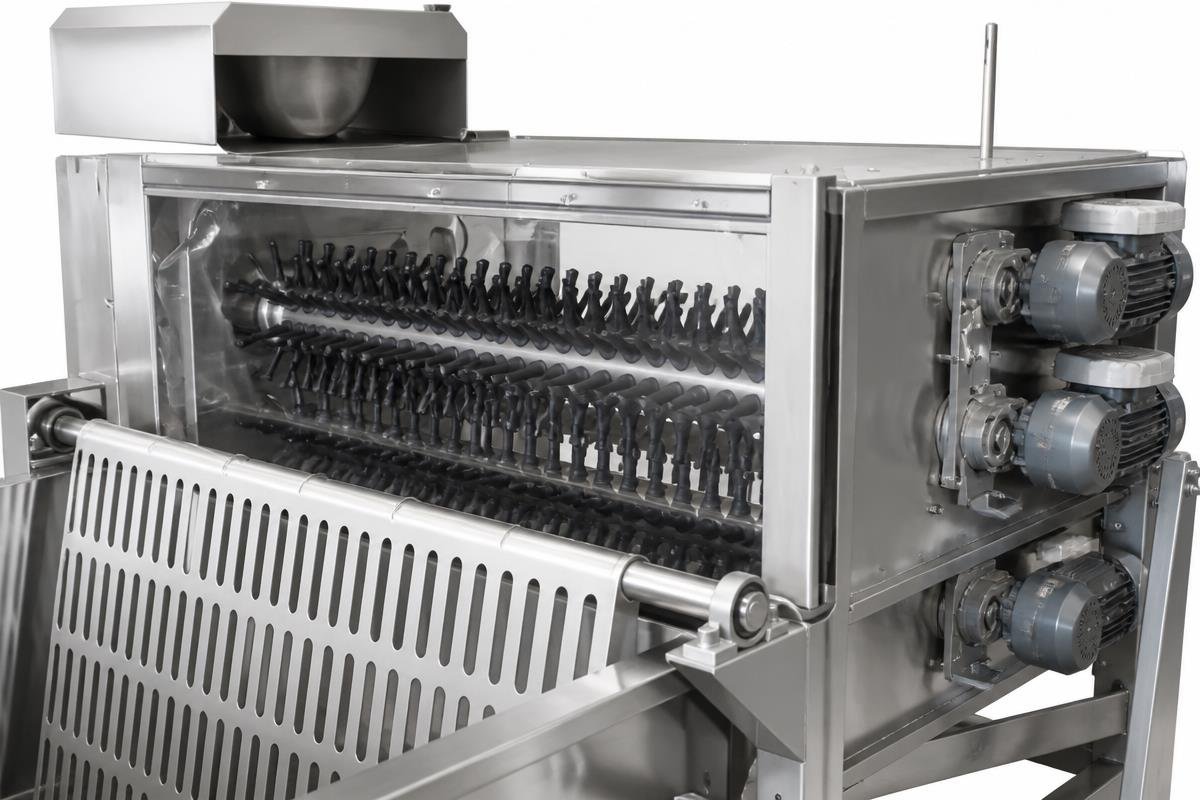

Henger's primary dehairing solution for pig slaughter is the spiral dehairing machine, which uses high-speed rotating rubber fingers arranged in a spiral pattern along a horizontal axis. As the carcass passes through, the fingers scrub all body surfaces simultaneously, achieving ≥95% hair removal rate. An integrated hair collection conveyor removes bristles from the work zone, keeping the workshop clean and reducing manual cleanup.

• Spiral dehairing machines (standalone): Available in capacities from 50 to 1,000 pigs per hour. Suitable for continuous-line operations where the scalding tank and dehairing machine are separate units on the same processing rail.

• Integrated scalding-dehairing machines: Combine both stages in one frame. The scalding pool feeds directly into the dehairing chamber via an automatic conveyor gate, minimizing the temperature drop between scalding exit and dehairing entry. Recommended for new plants with compact layouts or daily volumes of 50–300 pigs/day.

Whether using a standalone spiral dehairer or an integrated unit, capacity matching between the scalding section and the dehairing section is critical. If dehairing throughput is lower than scalding output, carcasses will cool before entering the dehairing zone, closing hair follicles and degrading removal quality. Size your dehairing capacity at 10–15% above your target line speed as a practical buffer.

Water Management and Hygiene in the Scalding Zone

The scalding zone is a high microbial-risk area in the slaughter process. Hot water creates ideal conditions for bacterial proliferation if the tank is not managed correctly. Key hygiene practices include:

• Maintaining water temperature above 60°C at all times, which suppresses most mesophilic bacteria.

• Replacing or filtering scalding water at defined intervals—many HACCP plans specify complete water changes every 4–6 hours of operation, or continuous overflow systems that maintain water quality.

• Fitting the scalding tank with easy-clean stainless steel surfaces (SUS304 minimum), smooth welds, and no dead corners where organic material can accumulate.

• Locating the scalding tank downstream of the stunning and bleeding section, with a physical separation barrier to prevent splash contamination from blood and rumen content.

In export-grade facilities, the scalding zone design is typically reviewed by veterinary inspectors and must comply with local food safety authority requirements. Henger's scalding tanks are fabricated in SUS304 stainless steel with flush drains, overflow controls, and insulated exterior panels to reduce heat loss and energy consumption.

For spiral dehairing machine specifications, visit the spiral dehairing machine page.

Matching Equipment to Your Daily Slaughter Volume

Before specifying any scalding or dehairing equipment, the fundamental starting point is your target slaughter volume—expressed in pigs per hour (PPH) or pigs per day—and the number of operational hours per shift. The table below provides a general sizing reference:

These ranges are indicative only. Actual equipment sizing must account for carcass weight distribution, shift patterns, downtime allowances, and the specific heat-up time of your scalding tank at startup. Henger's engineering team provides customized line calculations for each project based on actual operational parameters.

FAQ

What happens if scalding temperature exceeds 65°C?

Overscalding causes the outer skin layer to partially cook, which tightens the hair follicles rather than opening them. The result is poor dehairing performance, skin surface tears during mechanical dehairing, and a carcass appearance that will not meet export standards. Recovery is not possible after overscalding—the carcass must be trimmed manually to remove damaged skin areas, reducing yield.

Can the same scalding line process both heavy and light pigs?

Yes, but it requires adjustable conveyor speed (for continuous systems) or adjustable immersion time (for batch systems). Lighter pigs require shorter scalding times; if they receive the same duration as heavy pigs, overscalding is likely. Modern continuous scalding tanks with variable-speed drives allow operators to adjust throughput speed based on the carcass weight profile of the day's kill. Henger's engineering team can configure variable-speed controls as part of the line design.

Getting the scalding and dehairing stage right is foundational to pork processing quality. Temperature control, equipment sizing, water management, and hygiene zoning are not areas where approximation is acceptable—they directly determine whether your carcasses meet the surface quality standards required for domestic retail, export, or HACCP certification.

Henger Manufacturing designs and builds complete pig slaughter lines, including scalding tanks, dehairing machines, and integrated water management systems, from our factory in Shandong, China. Every system is customized to your daily volume, facility layout, and compliance requirements.

Share your daily slaughter volume and carcass weight range with our engineering team, and we will provide a complete scalding and dehairing equipment plan—including tank dimensions, machine specifications, and water system design—tailored to your facility. Contact us at info2@hengerchina.com or reach us on WhatsApp at +86 188 5430 1050.
