Product Introduction:

Cattle Head Cleaning Device — High-Pressure Hot Water Rinse with Integrated Tool Disinfection

Professional Skinned Head Cleaning Station for By-Product Processing

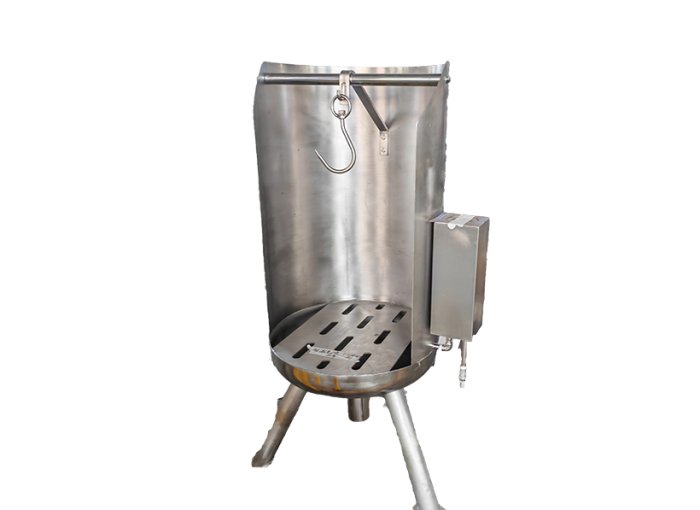

The Cattle Head Cleaning Device from Henger Manufacturing is a dedicated workstation for cleaning skinned cattle heads. Operators use knives for trimming while simultaneously applying high-pressure hot water rinsing, with all used tools immediately placed in an integrated disinfection unit (82°C hot water) to ensure continuous hygiene compliance.

(3) Reviews

PRODUCT DETAILS

Main Components

· Cattle head hook — Suspends and secures the head during cleaning

· Cleaning frame — Provides positioning and support limits

· Tool disinfection device — 82°C constant-temperature hot water sterilization unit

· High-pressure spray system — Hot water spray gun for thorough rinsing

· Bottom drainage system — Direct wastewater discharge pipe

· Transport cart interface — Easy transfer of cleaned heads


Operation Process

Hook up skinned head → Trim with tools → High-pressure hot water rinse

→ Used tools go into disinfection device → Wastage drains via bottom pipe

→ Remove cleaned head → Place in transport vehicle


Technical Specifications

Parameter

Value

Hook Load Capacity

≥25 kg (single head weight)

Disinfection Water Temperature

82 ± 2℃ (auto恒温 control)

Spray Pressure

0.3~0.5 MPa (adjustable)

Rinse Water Temperature

40~60℃ (warm water)

Material

SUS304 stainless steel throughout



Standards Compliance

· GB 12694 Slaughterhouse Hygiene Specification

Contact us for head cleaning station configurations matched to your by-product processing workflow.
