Energy-Efficient Flash Freezer | Rapid Freezing Technology

Q: What products are suitable for flash freezing?

Flash freezers handle seafood such as fish, shrimp, and shellfish, meat cuts and patties, poultry, fruits, vegetables, bakery products, and prepared foods. Products should be relatively uniform in size for optimal freezing performance.

Q: How is the freezing time determined?

Freezing time depends on product type, initial temperature, thickness, and target temperature. The PLC control system includes preset programs optimized for common products and also allows custom programs.

Q: Can we integrate flash freezing into production lines?

Yes, conveyor-fed flash freezers are available for continuous operations, as well as batch loading options for facilities with discrete production.

Q: What maintenance is required?

Recommended maintenance includes daily chamber cleaning and door seal checks, weekly refrigerant and fan inspections, monthly condenser cleaning and sensor calibration, and quarterly professional service inspections.

Q: What power supply is required?

Standard models require 380V, 3-phase, 50Hz power. Total power consumption ranges from 25KW to 180KW depending on capacity, and a dedicated power connection is recommended.

Q: Do you provide installation and training?

Yes, installation, electrical connection, refrigeration system commissioning, and operator training are available, including refrigeration technician coordination.

Q: What is the typical lead time?

Standard models require 20–30 days, while custom configurations generally require 30–45 days. Large-scale projects may need additional engineering time.

Q: Are eco-friendly refrigerant options available?

Yes, models using R449A, R290 (propane), or CO2 transcritical systems are available for facilities requiring low-GWP refrigerant solutions.

Flash Freezer

Product Introduction:

Industrial flash freezers for rapid freezing of meat, seafood, fruits, and prepared foods. Core temperature -18°C in 30–90 minutes. Capacity from 500kg to 5000kg per batch. PLC controlled, energy-efficient operation for food processing facilities.

ADD TO CART Inquire Now

(15) Reviews

Quick Navigation

Product Details
Reviews
Inquiry
Products Recommended

PRODUCT DETAILS

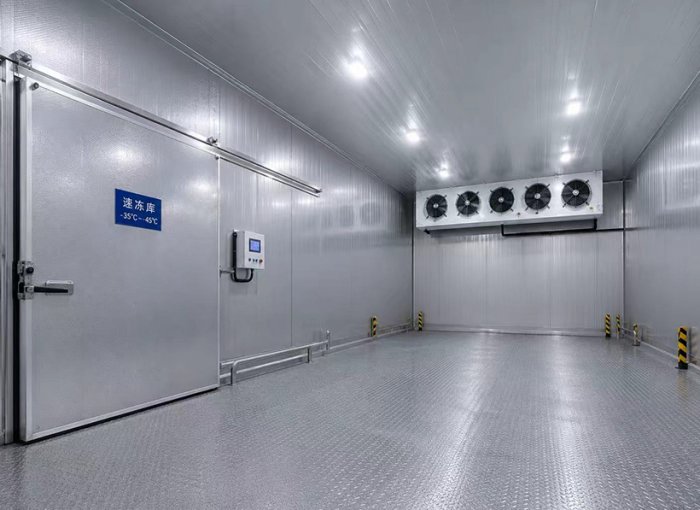

The Flash Freezer is an industrial-grade rapid freezing system designed for high-volume food processing operations requiring fast, efficient product freezing. Using a combination of high-velocity air circulation and optimized refrigeration, this system achieves ultra-rapid freezing that preserves product quality, extends shelf life, and improves operational efficiency.

Core Technology:

· High-Velocity Air Circulation: Multi-fan system generates 10–15 m/s air velocity

· Rapid Heat Extraction: Core temperature -18°C in 30–90 minutes

· Uniform Air Distribution: Even airflow ensures consistent freezing throughout chamber

· PLC Control System: Precise temperature and time management

· Energy Recovery: Heat reclamation optional for energy efficiency

Key Advantages:

· Preserves cellular structure and nutritional value

· Minimizes drip loss during thawing

· Achieves Individual Quick Freezing (IQF) quality

· Significantly reduces freezing time vs. conventional methods

Key Highlights

Highlight	Description
Ultra-Rapid Freezing	-18°C core temp in 30–90 minutes — up to 10x faster than conventional
IQF Quality	Individual Quick Freezing preserves product shape and quality
High Capacity	500kg – 5000kg per batch (custom sizes available)
Multi-Product	Suitable for meat, seafood, poultry, fruits, vegetables, prepared foods
PLC Control	Touch screen operation with preset programs for different products
Energy Efficient	Variable speed fans, heat recovery system optional
Food Safety	SUS304 stainless steel, HACCP compliant design
Flexible Loading	Tray, trolley, or conveyor loading options

Technical Specifications

Parameter	Specification
Freezing Capacity	500kg – 5000kg per batch
Chamber Temperature	-35°C to -45°C
Initial Product Temp	+4°C to +20°C
Final Core Temp	-18°C or below
Freezing Time	30–90 minutes (product dependent)
Air Velocity	10–15 m/s
Evaporating Temp	-40°C to -45°C
Condensing Temp	+35°C to +40°C
Refrigerant	R404A, R507, R449A (eco-friendly options)
Power Supply	380V / 3-phase / 50Hz
Total Power	25KW – 120KW (by capacity)
Body Material	SUS304 stainless steel
Wall Insulation	Polyurethane foam (150–200mm)
Floor Insulation	XPS + polyurethane (200mm+)
Control System	PLC touch screen, 7" color display
Defrost System	Automatic hot gas defrost
Safety Features	Overload, high/low pressure, emergency stop, alarms
Capacity Range	2m³ – 30m³ internal volume

Model Specifications

Compact Flash Freezers

Model	Capacity (kg)	Volume (m³)	Power (KW)	Dimensions (L×W×H m)	Freezing Time
FF-C01	500	2	25	2.0×1.5×2.0	45–60min
FF-C02	1000	4	40	2.5×2.0×2.2	45–75min
FF-C03	1500	6	55	3.0×2.2×2.5	45–90min

Standard Flash Freezers

Model	Capacity (kg)	Volume (m³)	Power (KW)	Dimensions (L×W×H m)	Freezing Time
FF-S01	2000	8	65	3.5×2.5×2.5	45–90min
FF-S02	3000	12	85	4.0×3.0×2.8	60–90min
FF-S03	4000	16	100	4.5×3.2×3.0	60–120min
FF-S04	5000	20	120	5.0×3.5×3.2	60–120min

Heavy-Duty Flash Freezers

Model	Capacity (kg)	Volume (m³)	Power (KW)	Application
FF-H01	6000	24	140	Large-scale processing
FF-H02	8000	30	180	Industrial facilities

Product Categories & Programs

Pre-Set Freezing Programs

Product Type	Initial Temp	Target Temp	Time	Air Temp
Lean Fish	+4°C	-18°C	30–45min	-40°C
Fatty Fish	+4°C	-18°C	45–60min	-35°C
White Meat	+4°C	-18°C	45–60min	-38°C
Poultry	+4°C	-18°C	40–55min	-40°C
Shrimp	+4°C	-18°C	25–35min	-42°C
Fruits	+20°C	-18°C	60–90min	-35°C
Vegetables	+20°C	-18°C	60–90min	-35°C
Prepared Foods	+4°C	-18°C	45–75min	-38°C

Application Scenarios

Industry	Application
Seafood Processing	Fish, shrimp, prawns, squid, crab — IQF quality
Meat Processing	Meat cuts, hamburgers, meatballs, meat patties
Poultry Processing	Whole chicken, chicken parts, duck, prepared poultry
Fruit & Vegetable	Berries, corn, peas, green beans, leafy vegetables
Bakery & Snacks	Frozen dough, spring rolls, samosas, pastries
Ready Meals	Frozen meals, dumplings, wontons, dim sum
Marine Fisheries	Onshore processing, vessel-based processing
Food Distribution	Central kitchens, food service distributors

Loading & Operation Guide

Pre-Operation:

1. Pre-chill chamber to target temperature

2. Verify product temperature and packaging

3. Load products on trays/trolleys with spacing for airflow

Loading Patterns:

· Maintain 5–10cm spacing between products

· Avoid stacking products directly

· Ensure even distribution for uniform airflow

Operation Sequence:

1. Load products into pre-chilled chamber

2. Close door and start freezing cycle

3. Monitor temperature via PLC display

4. Cycle completes when target core temp achieved

5. Remove products and transfer to cold storage

FAQ

1. What is the difference between flash freezing and conventional freezing?

Flash freezing achieves temperatures of -18°C in 30–90 minutes compared to 4–24 hours for conventional methods. This rapid freezing creates smaller ice crystals, preserving cellular structure and reducing drip loss when thawed.

2. What products are suitable for flash freezing?

Flash freezers handle a wide range: seafood (fish, shrimp, shellfish), meat (cuts, patties), poultry, fruits, vegetables, bakery products, and prepared foods. The high air velocity requires products to be relatively uniform in size.

3. How is the freezing time determined?

Time depends on product type, initial temperature, thickness, and target temperature. The PLC control system includes preset programs optimized for common products, or operators can create custom programs.

4. What is the energy consumption?

Energy consumption varies by model and product. Typical consumption is 0.08–0.15 kWh per kg of frozen product. Variable speed fans and heat recovery options can further reduce energy use.

5. Can we integrate flash freezing into production lines?

Yes, we offer conveyor-fed flash freezers for continuous operations, as well as batch loading options for facilities with discrete production.

6. What maintenance is required?

· Daily: Clean chamber, check door seals

· Weekly: Check refrigerant levels, inspect fans

· Monthly: Clean condensers, calibrate sensors

· Quarterly: Professional service inspection

7. What power supply is required?

Standard models require 380V/3-phase/50Hz power. Total power consumption ranges from 25KW to 180KW depending on capacity. A dedicated power connection is recommended.

8. Do you provide installation and training?

Yes, we offer complete installation, electrical connection, refrigeration system commissioning, and operator training. Refrigeration technician coordination is included.

9. What is the typical lead time?

Standard models: 20–30 days. Custom configurations: 30–45 days. Large-scale projects may require additional time for engineering.

10. Are eco-friendly refrigerant options available?

Yes, we offer models using R449A, R290 (propane), or CO2 transcritical systems for facilities requiring low-GWP refrigerants.
